2KK5088 - N-Channel MOSFET

Key Features

  • VDS (V) = 30V ID = 10 A (VGS = 10V) RDS(ON) 12m (VGS = 10V) RDS(ON) 16m (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D MOSFET Unit:mm 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S Absolute Maximum Ratings Ta = 25 Drain-Source Voltage Gate-Source Voltage VDS Spike Parameter Symbol Rating Unit VDS 30 VGS ±20 V 100ns VSPIKE 36 Continuous Drain Current Pulsed Drain Current TA=25 10 ID TA=100 6.0 A IDM 50 Avalanche Current IAS 15 Avalanche E.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5081DFN N-Channel MOSFET
2KK5082DFN N-Channel MOSFET
2KK5085DFN N-Channel MOSFET
2KK5086DFN N-Channel MOSFET
2KK5087DFN N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

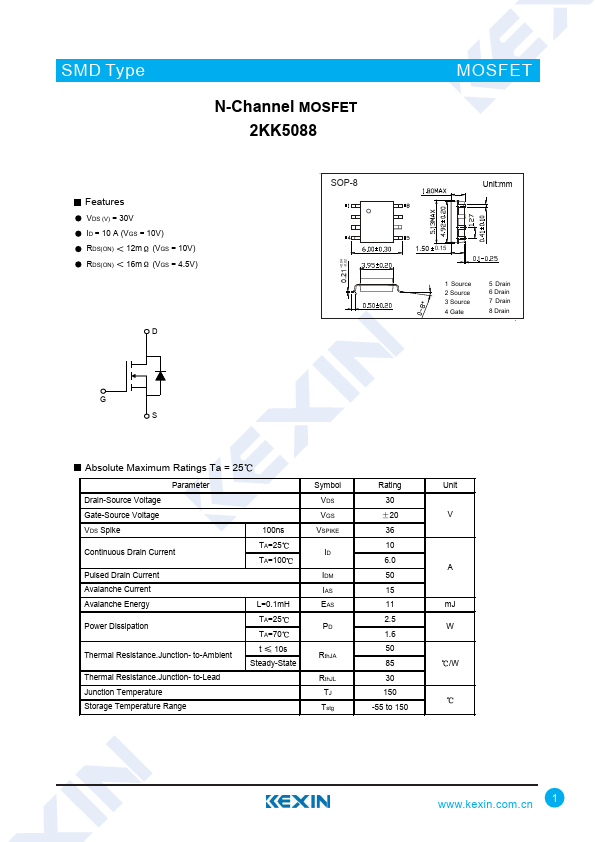

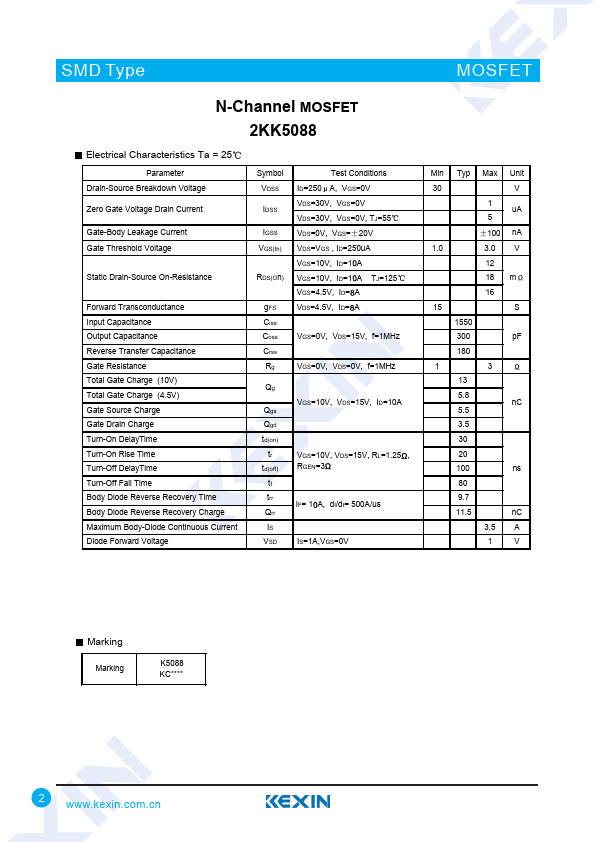

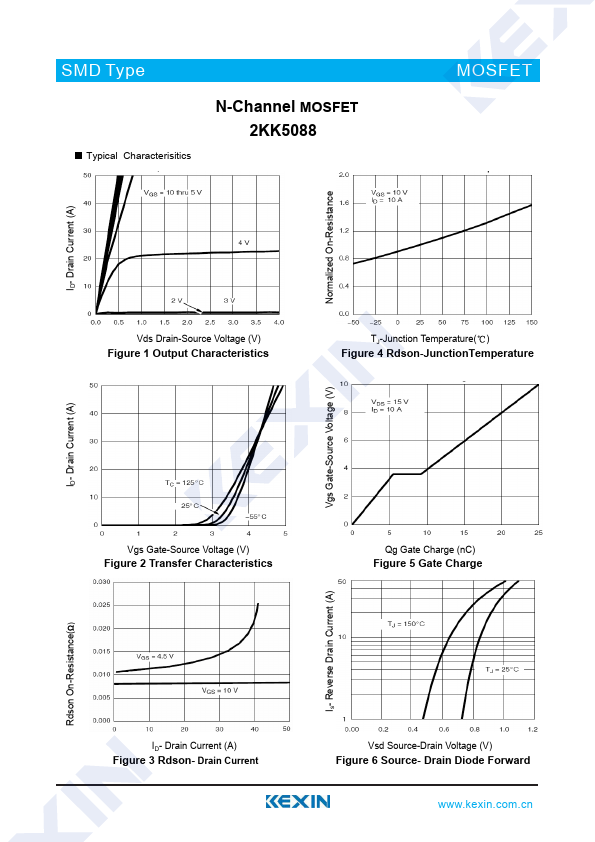

SMD Type N-Channel MOSFET 2KK5088 Features VDS (V) = 30V ID = 10 A (VGS = 10V) RDS(ON) 12m (VGS = 10V) RDS(ON) 16m (VGS = 4.5V) SOP-8 +0.04 0.21 -0.02 D MOSFET Unit:mm 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain G S Absolute Maximum Ratings Ta = 25 Drain-Source Voltage Gate-Source Voltage VDS Spike Parameter Symbol Rating Unit VDS 30 VGS ±20 V 100ns VSPIKE 36 Continuous Drain Current Pulsed Drain Current TA=25 10 ID TA=100 6.0 A IDM 50 Avalanche Current IAS 15 Avalanche Energy L=0.1mH EAS 11 mJ Power Dissipation TA=25 2.5 PD W TA=70 1.6 t 10s 50 Thermal Resistance.Junction- to-Ambient RthJA Steady-State 85 /W Thermal Resistance.
