2KK5016 - N-Channel MOSFET

Features

  • s.
  • VDS = 20 V.
  • ID = 238 mA.
  • Rdson = 1.5Ω@Vgs=4.5V (Typ. ).
  • Low Gate Charge for Fast Switching.
  • ESD Protected Gate 405                                  3&'  6OJ U N N   (BUF  4PVSDF  %SBJO .
  • Absolute Maximum Ratings (TA = 25℃) Parameter Symbol Rating Drain-Source Voltage VDS 20 Gate-Source Voltage VGS ±10 Conti.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2KK904 N-Channel Silicon Power MOS FET Fuji Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2KK5010E N-Channel Enhancement MOSFET
2KK5011 N-Channel MOSFET
2KK5012 N-Channel MOSFET
2KK5013 N-Channel Enhancement MOSFET
2KK5018DFN N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

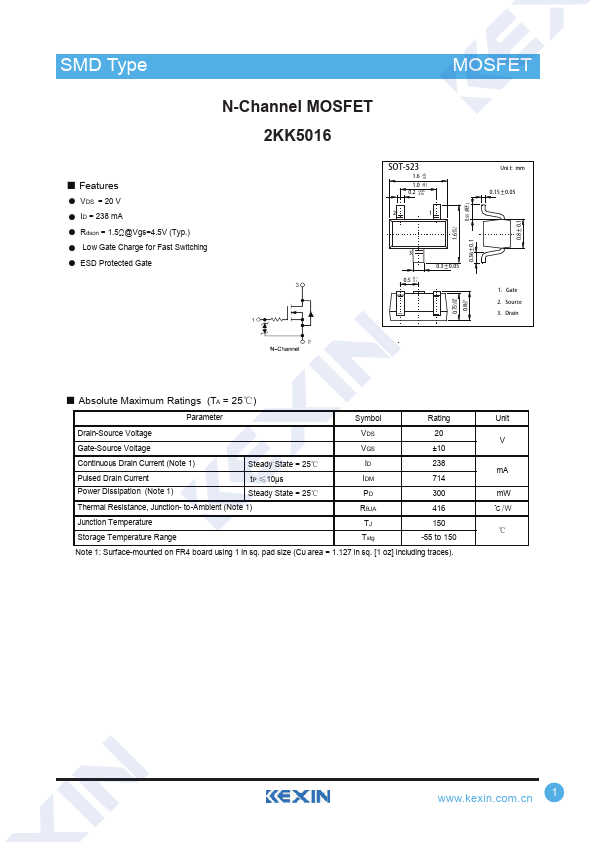

SMD Type MOSFET N-Channel MOSFET 2KK5016 ■ Features ● VDS = 20 V ● ID = 238 mA ● Rdson = 1.5Ω@Vgs=4.5V (Typ.
