2KK5012 - N-Channel MOSFET

Features

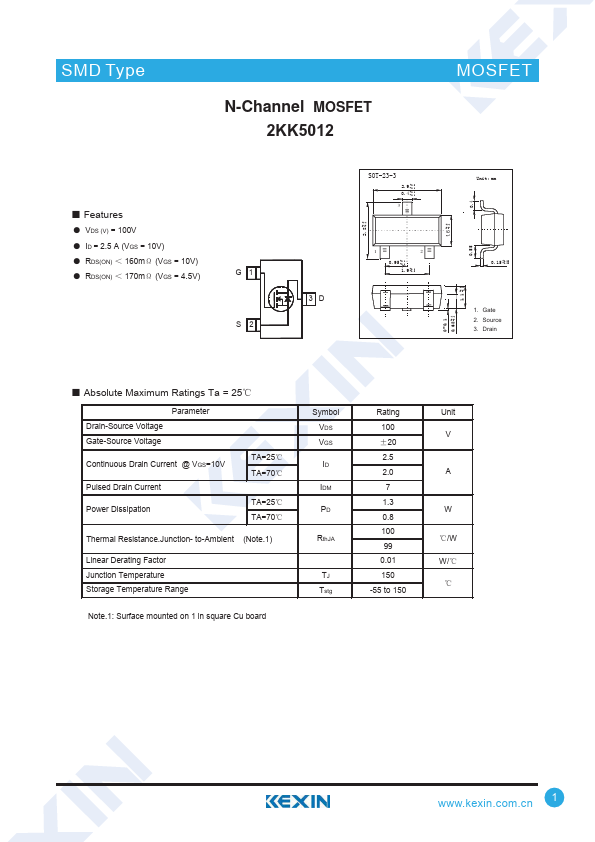

  • ƽ VDS (V) = 100V ƽ ID = 2.5 A (VGS = 10V) ƽ RDS(ON) ˘ 160m¡ (VGS = 10V) ƽ RDS(ON) ˘ 170m¡ (VGS = 4.5V) G1 S2 3D    627       3 1 2            1.6       8QLW PP    1. Gate 2. Source 3. Drain Ƶ Absolute Maximum Ratings Ta = 25ć Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current @ VGS=10V Pulsed Drain Current Power Dissipation TA=25ć TA=70ć.
