IR2113S - HIGH AND LOW SIDE DRIVER

Description

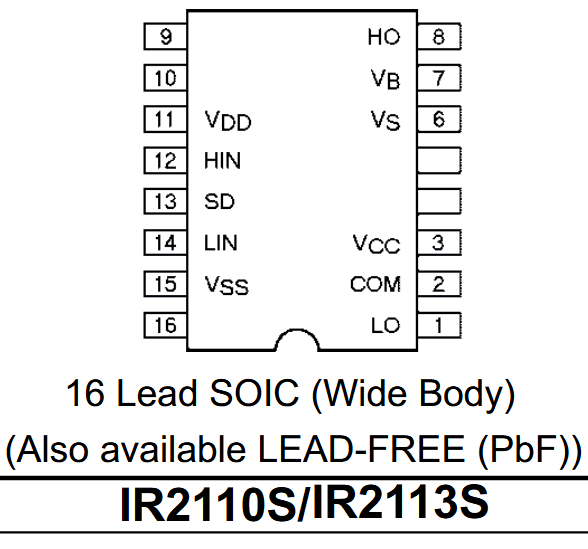

The IR2110/IR2113 are high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output chan16-Lead SOIC nels.

Proprietary HVIC and latch immune CMOS technologies enable 14-Lead PDIP IR2110S/IR2113S ruggedized monolithic construction.

Features

  • Floating channel designed for bootstrap operation.
  • Fully operational to +500V or +600V Tolerant to negative transient voltage dV/dt immune Gate drive supply range from 10 to 20V Undervoltage lockout for both channels 3.3V logic compatible Separate logic supply range from 3.3V to 20V Logic and power ground ±5V offset CMOS Schmitt-triggered inputs with pull-down Cycle by cycle edge-triggered shutdown logic Mat.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IR2186 HIGH AND LOW SIDE DRIVER IRF
IR21864PBF HIGH AND LOW SIDE DRIVER IRF
IR21864SPBF HIGH AND LOW SIDE DRIVER IRF
IR2186S HIGH AND LOW SIDE DRIVER IRF
IR21BD Infrared Single Gas Sensor SGX

Other Datasheets by International Rectifier (now Infineon)

Part Number Description
IR2113SPBF HIGH AND LOW SIDE DRIVER
IR2113 HIGH AND LOW SIDE DRIVER
IR2113C High and Low Side Driver
IR2113E6 HIGH AND LOW SIDE DRIVER
IR2113PBF HIGH AND LOW SIDE DRIVER

Full PDF Text Transcription

Click to expand full text
Data Sheet No. PD60147 Rev.T IR2110(S)/IR2113(S) & (PbF) HIGH AND LOW SIDE DRIVER Features • Floating channel designed for bootstrap operation • • • • • • • • Fully operational to +500V or +600V Tolerant to negative transient voltage dV/dt immune Gate drive supply range from 10 to 20V Undervoltage lockout for both channels 3.3V logic compatible Separate logic supply range from 3.3V to 20V Logic and power ground ±5V offset CMOS Schmitt-triggered inputs with pull-down Cycle by cycle edge-triggered shutdown logic Matched propagation delay for both channels Outputs in phase with inputs Also available LEAD-FREE Product Summary VOFFSET (IR2110) (IR2113) IO+/VOUT ton/off (typ.) 500V max. 600V max. 2A / 2A 10 - 20V 120 & 94 ns Delay Matching (IR2110) 10 ns max. (IR2113) 20ns max.
