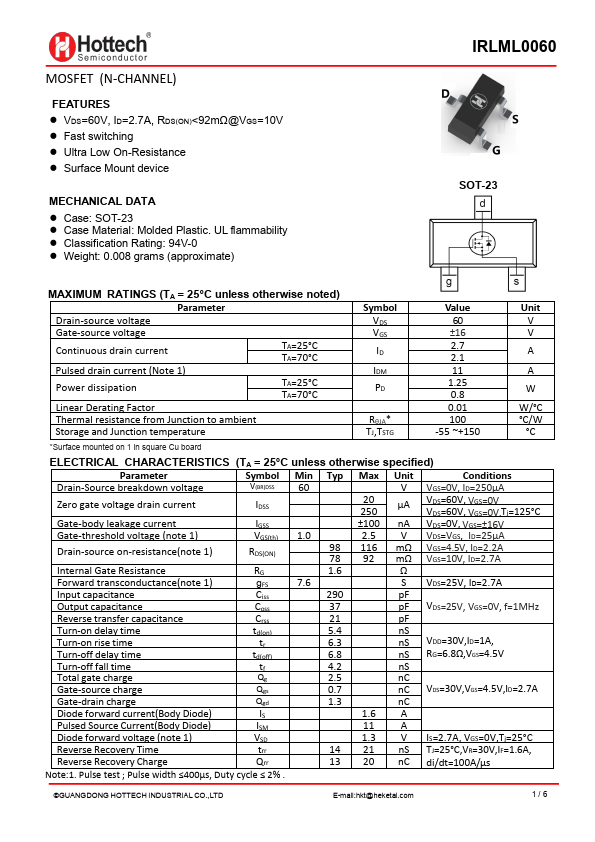

MOSFET (N-CHANNEL)
FEATURES VDS=60V, ID=2.7A, RDS(ON)<92mΩ@VGS=10V Fast switching Ultra Low On-Resistance Surface Mount device
MECHANICAL DATA Case: SOT-23 Case Material: Molded Plastic. UL flammability Classification Rating: 94V-0 Weight: 0.008 grams (approximate)
IRLML0060
SOT-23
MAXIMUM RATINGS (TA = 25°C unless otherwise noted)
Parameter
Drain-source voltage
Gate-source voltage
Continuous drain current
TA=25°C TA=70°C
Pulsed drain current (Note 1)
Power dissipation
TA=25°C TA=70°C
Linear Derating Factor
Thermal resistance from Junction to ambient
Storage and Junction temperature
Symbol VDS VGS ID IDM PD
RθJA* TJ,TSTG
Value 60 ±16 2.7 2.1 11 1.25 0.8 0.
