IRLML0060 - 60V N-Channel MOSFET

Key Features

Industry-standard pinout.
Compatible with existing Surface Mount Techniques.
compliant containing no lead, no bromide and no halogen.
Industrial qualification Absolute Maximum Ratings Symbol Parameter VDS Drain-Source Voltage ID @ TA = 25°C Continuous Drain Current, VGS @ 10V ID @ TA = 70°C Continuous Drain Current, VGS @ 10V IDM Pulsed Drain Current PD @TA = 25°C Maximum Power Dissipation PD @TA = 70°C Maximum Power Dissipation Linear Deratin.

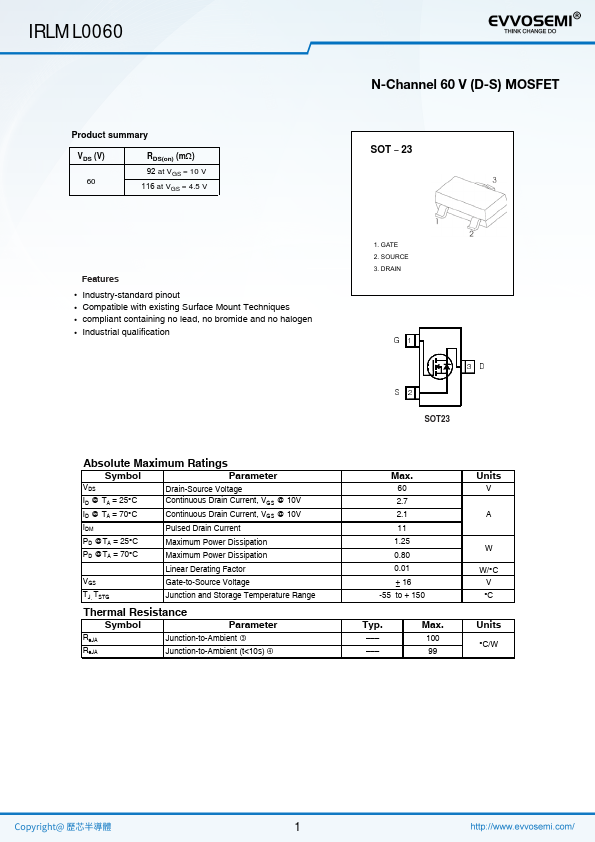

IRLML0060 60v n-channel mosfet by EVVOSEMI - Datasheet Preview

Datasheet Details

Part number	IRLML0060
Manufacturer	EVVOSEMI
File Size	830.89 KB
Description	60V N-Channel MOSFET
Datasheet	IRLML0060 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
IRLML0060	N-Channel MOSFET	Kexin
IRLML0060	Power MOSFET	Infineon
IRLML0060	N-Channel MOSFET	Hottech
IRLML0060	60V N-Channel MOSFET	UMW
IRLML0060TRPbF	Power MOSFET	Infineon

Other Datasheets by EVVOSEMI

Part Number	Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

IRLML0060 Product summary VDS (V) 60 RDS(on) (mΩ) 92 at VGS = 10 V 116 at VGS = 4.5 V N-Channel 60 V (D-S) MOSFET SOT–23 Features • Industry-standard pinout • Compatible with existing Surface Mount Techniques • compliant containing no lead, no bromide and no halogen • Industrial qualification Absolute Maximum Ratings Symbol Parameter VDS Drain-Source Voltage ID @ TA = 25°C Continuous Drain Current, VGS @ 10V ID @ TA = 70°C Continuous Drain Current, VGS @ 10V IDM Pulsed Drain Current PD @TA = 25°C Maximum Power Dissipation PD @TA = 70°C Maximum Power Dissipation Linear Derating Factor VGS Gate-to-Source Voltage TJ, TSTG Junction and Storage Temperature Range Thermal Resistance Symbol RJA RJA Parameter e Junction-to-Ambient f Junction-to-Ambient (t<10s) 1.
