BL450N06-6L - N-Channel Enhancement Mode MOSFET

Features

  • Advanced trench technology.
  • Low on-resistance.
  • Low gate charge.
  • HBM: JESD22-A114-B: 1B N-Channel Enhancement Mode MOSFET BL450N06-6L.

📥 Download Datasheet

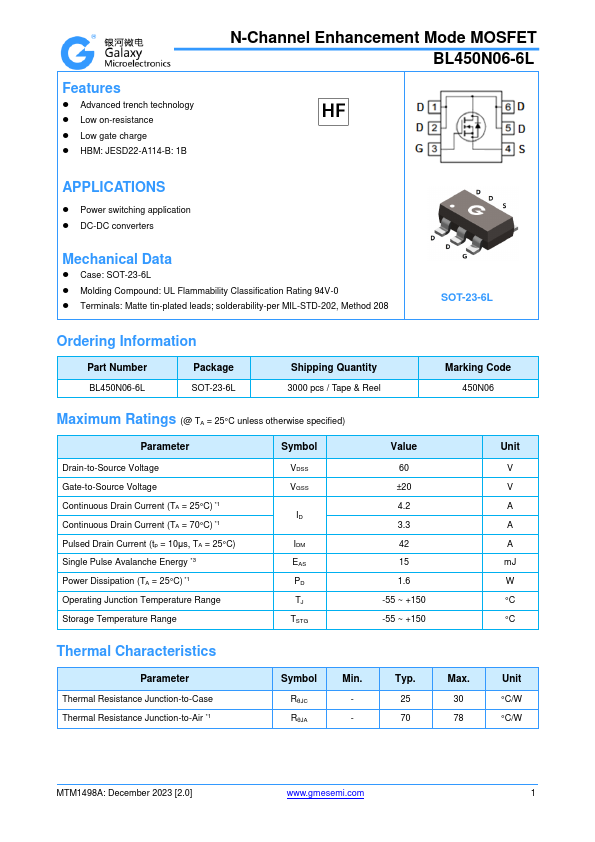

Datasheet preview – BL450N06-6L

📁 Similar Datasheet

  • BL4054 - 800mA Standalone Linear Li-Ion Battery Charger (Shanghai Belling)
  • BL4054B - 800mA Standalone Linear Li-Ion Battery Charger (BELLING)
  • BL4056 - 1A Lithium Ion Battery Linear Charger (BELLING)
  • BL431 - ADJUSTABLE PRECISION ZENER SHUNT REGULATOR (SHANGHAI BELLING)
  • BL4684C - Dual SPDT Analog Switch (BELLING)
  • BL4863 - Dual 2.2W Audio Amplifier Plus Stereo Headphone Function (BELLING)
  • BL4863B - Stereo 2.5W audio power amplifier (BELLING)
  • BL48EB - Brushless DC Motor (MACCON)
  • BL4N150 - Power MOSFET (BELLING)
  • BL4N90 - Power MOSFET (BELLING)
Other Datasheets by GME
  • BL450P04R - P-Channel Enhancement Mode MOSFET
  • BL431 - Programmable Shunt Regulator
  • BL431L - Programmable Shunt Regulator
  • BL432 - Programmable Shunt Regulator
  • BL4N50D - N-Channel Enhancement Mode MOSFET
  • BL4N50F - N-Channel Power MOSFET
  • BL4N60 - N-Channel Power Mosfet
  • BL4N60D - N-Channel Power Mosfet

Full PDF Text Transcription

Click to expand full text
Features  Advanced trench technology  Low on-resistance  Low gate charge  HBM: JESD22-A114-B: 1B N-Channel Enhancement Mode MOSFET BL450N06-6L APPLICATIONS  Power switching application  DC-DC converters Mechanical Data  Case: SOT-23-6L  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOT-23-6L Ordering Information Part Number BL450N06-6L Package SOT-23-6L Shipping Quantity 3000 pcs / Tape & Reel Marking Code 450N06 Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current (TA = 25°C) *1 Continuous Drain Current (TA = 70°C) *1 Pulsed Drain Current (tp = 10μs, TA = 25°C) Single Pulse Avalanche Energy *3
