BL4N50D - N-Channel Enhancement Mode MOSFET

Features

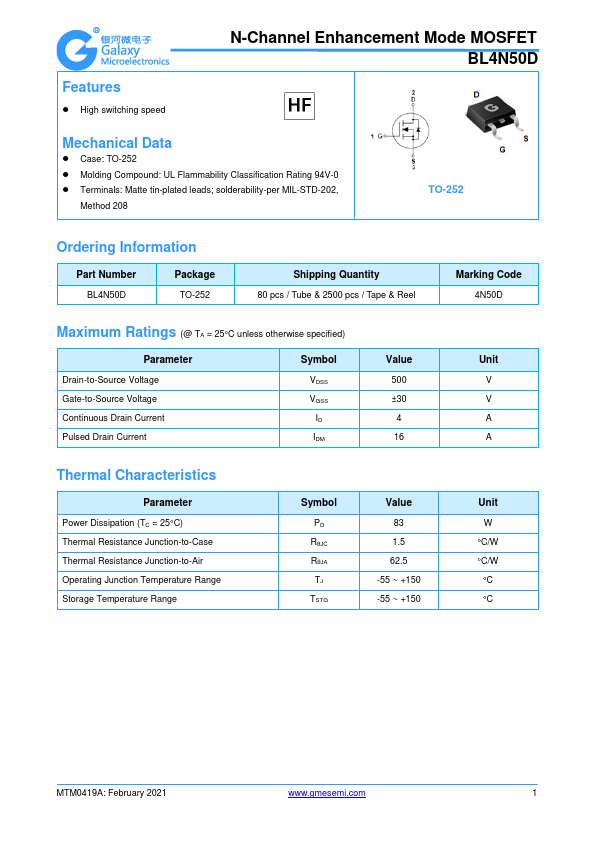

  • High switching speed N-Channel Enhancement Mode MOSFET BL4N50D Mechanical Data.
  • Case: TO-252.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 TO-252 Ordering Information Part Number BL4N50D Package TO-252 Shipping Quantity 80 pcs / Tube & 2500 pcs / Tape & Reel Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Drain-to-Source Voltage Gate-to-Source Voltage Co.

📥 Download Datasheet

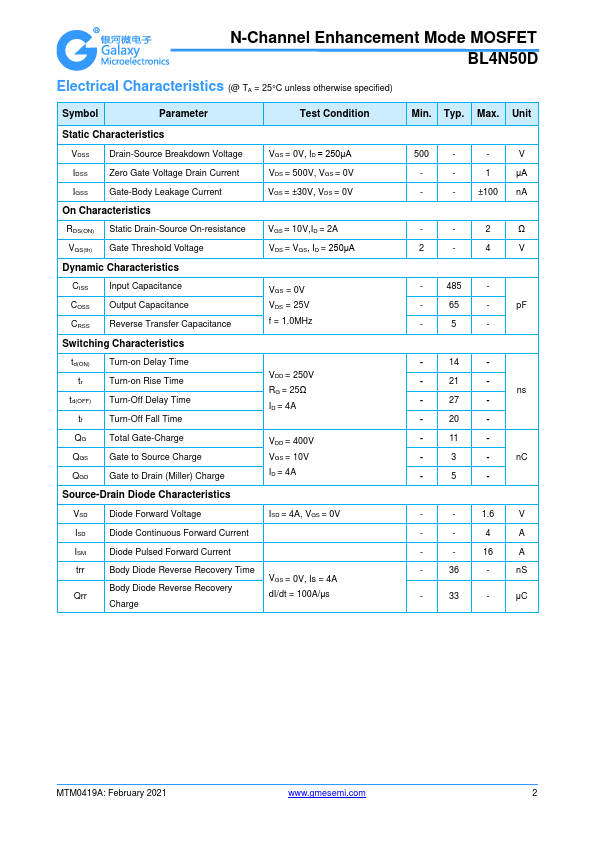

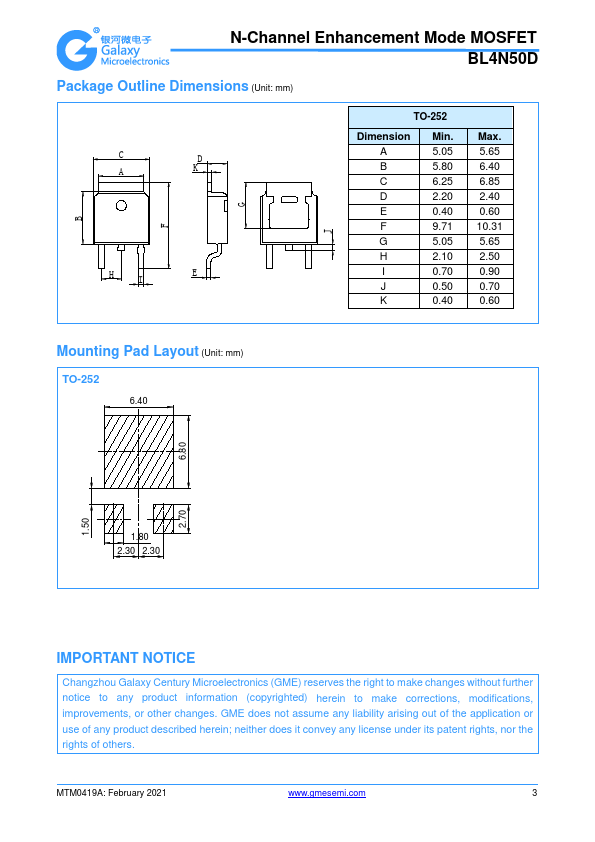

Datasheet preview – BL4N50D

Datasheet Details

Part number BL4N50D
Manufacturer Galaxy Microelectronics
File Size 252.05 KB
Description N-Channel Enhancement Mode MOSFET
Datasheet download datasheet BL4N50D Datasheet
