BL075P03F - P-Channel Enhancement Mode MOSFET

Features

  • Super low gate charge.
  • Green device available.
  • Excellent cdV / dt effect decline.
  • Advanced high cell density trench technology.
  • HBM: JESD22-A114-B: 1C Mechanical Data.
  • Case: ITO-220AB.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 ITO-220AB Ordering Information Part Number BL075P03F Package ITO-220AB Shipping Quantity 50 pcs / Tube Marking Code 075P03F Ma.

📥 Download Datasheet

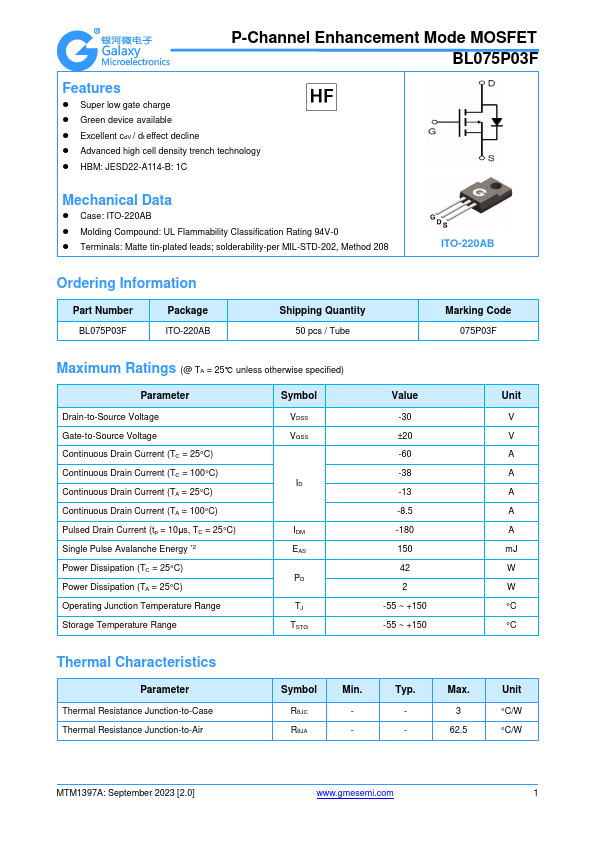

Datasheet preview – BL075P03F

Datasheet Details

Part number BL075P03F
Manufacturer Galaxy Microelectronics
File Size 536.53 KB
Description P-Channel Enhancement Mode MOSFET
Datasheet download datasheet BL075P03F Datasheet

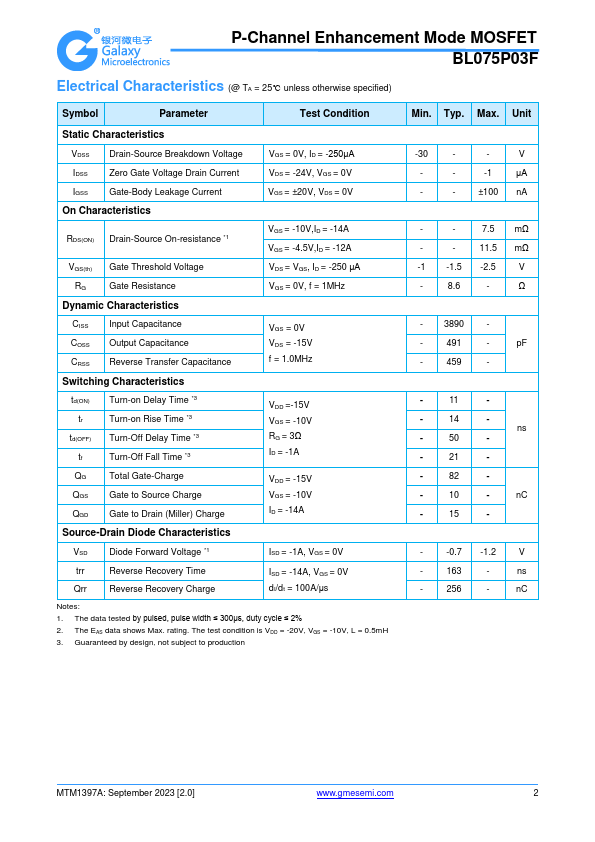

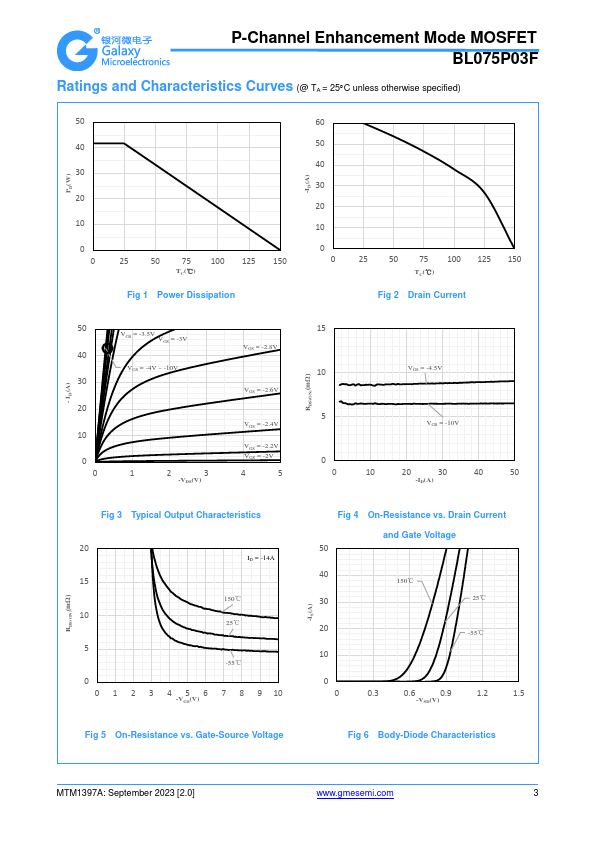

Additional preview pages of the BL075P03F datasheet.

📁 Similar Datasheet

  • BL0102-14-34 - 26mm LED CLUSTER (Kingbright Corporation)
  • BL02 - CMOS Gate Array (AMI)
  • BL0200C - High Efficiency (Sanken)
  • BL0202B - High Efficiency (Sanken)
  • BL0202C - High Efficiency (Sanken)
  • BL022A - Wideband LNA Gain Block (BeRex)
  • BL02RN1 - On-Board Type (DC) EMI Suppression Filters (Murata)
  • BL0305 - Digital Echo (Shanghai Belling)
  • BL0306 - Digital Echo (Shanghai Belling)
  • BL0306 - Digital reverb (Shanghai Belling)
Other Datasheets by GME

Full PDF Text Transcription

Click to expand full text
P-Channel Enhancement Mode MOSFET BL075P03F Features  Super low gate charge  Green device available  Excellent cdV / dt effect decline  Advanced high cell density trench technology  HBM: JESD22-A114-B: 1C Mechanical Data  Case: ITO-220AB  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 ITO-220AB Ordering Information Part Number BL075P03F Package ITO-220AB Shipping Quantity 50 pcs / Tube Marking Code 075P03F Maximum Ratings (@ TA = 25℃ unless otherwise specified) Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current (TC = 25°C) Continuous Drain Current (TC = 100°C) Continuous Drain Current (TA = 25°C) Continuous Drain Current (TA = 100°C) Pulsed Drain Curr
