BL090N12THF - N-Channel Enhancement Mode MOSFET

Features

  • Low RDS(ON) & FOM.
  • Extremely low switching loss.
  • Excellent stability and uniformity N-Channel Enhancement Mode MOSFET BL090N12THF Mechanical Data.
  • Case: ITO-220AB.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matted-Tin plated; Solderable Per MIL-STD-202, Method 208 ITO-220AB Ordering Information Part Number BL090N12THF Package ITO-220AB Shipping Quantity 50 pcs / Tube Marking Code 090N12THF Maximum Ratings (@ TC = 25°C unless.

📥 Download Datasheet

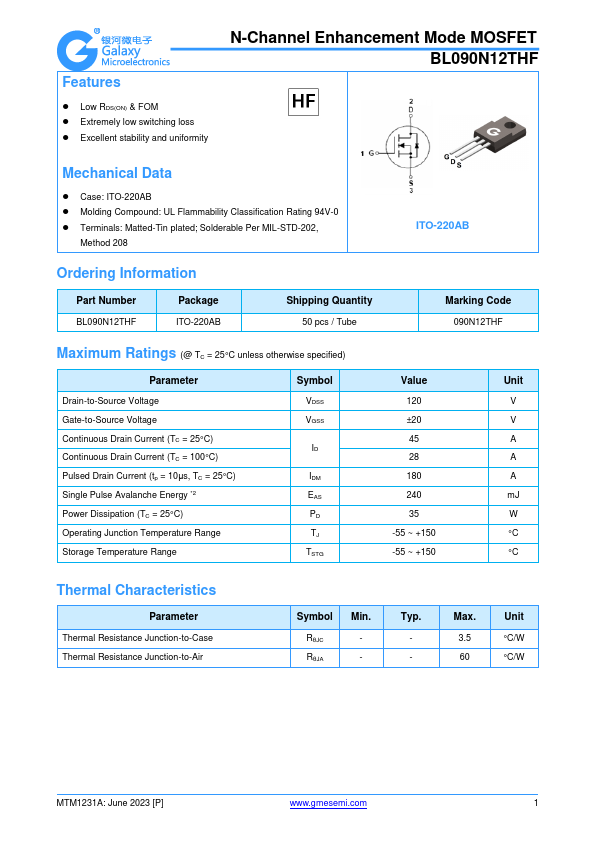

Datasheet preview – BL090N12THF

📁 Similar Datasheet

  • BL0910 - Ten-phase AC/DC power meter (BELLING)
  • BL0921 - Single Phase Energy Meter (BELLING)
  • BL0930 - Single Phase Energy Meter (SHANGHAI BELLING)
  • BL0930E - Single Phase Energy Meter (BELLING)
  • BL0932 - Dual Measurement Watt-hour Meter (Shanghai Belling)
  • BL0932B - Bi-Directional Electric Energy Neasurement Meter (Shanghai Belling)
  • BL0932B - Single Phase Energy (SHANGHAI BELLING)
  • BL0935 - Tri Phase Electrical Energy (Shanghai Belling)
  • BL0936 - Multi Rate Controller (Shanghai Belling)
  • BL0937 - Single Phase Energy Meter (BELLING)
Other Datasheets by GME
  • BL075P03F - P-Channel Enhancement Mode MOSFET

Full PDF Text Transcription

Click to expand full text
Features  Low RDS(ON) & FOM  Extremely low switching loss  Excellent stability and uniformity N-Channel Enhancement Mode MOSFET BL090N12THF Mechanical Data  Case: ITO-220AB  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matted-Tin plated; Solderable Per MIL-STD-202, Method 208 ITO-220AB Ordering Information Part Number BL090N12THF Package ITO-220AB Shipping Quantity 50 pcs / Tube Marking Code 090N12THF Maximum Ratings (@ TC = 25°C unless otherwise specified) Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current (TC = 25°C) Continuous Drain Current (TC = 100°C) Pulsed Drain Current (tp = 10μs, TC = 25°C) Single Pulse Avalanche Energy *2 Power Dissipation (TC = 25°C) Operating Junction Temperature Range Storage Temperatu
