V6340 - Ultra Low Cost 3-Pin Microprocessor Reset

General Description

The V6340 monitors the supply voltage of any electronic system, and generates the appropriate Reset signal.

The threshold must be chosen to the minimum allowed voltage which guarantees the good functionality of the system.

As long as VDD stays upside this voltage level, the output stays inactive.

Key Features

  •  SOT-23 package  Reset output state guaranteed down to VDD = 1V @ 25°C  Low supply current: stays stable during switching versions B, H, N: typ. 19µA at VDD = 5V other versions: typ. 38µA at VDD = 5V  ±2.5% voltage threshold accuracy  High noise immunity  No external components required  Push-pull or Open drain output  Pin compatible with MAX 809 in SOT-23, by appropriate layout on PCB  TTL output compatibility Typical Operating Configuration VDD.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
V6300 Narrowband Power Line Communication Processor Vango Technologies
V630ME01 OSCILLATOR Z-Communications
V630ME02 OSCILLATOR Z-Communications
V630ME03-LF Voltage-Controlled Oscillator Z-Communications
V630ME04 OSCILLATOR Z-Communications

Other Datasheets by EM Microelectronic (Swatch Group)

Part Number Description
V6300 Ultra Low Power 3-Pin Power-On Reset IC
V6301 Ultra Low Power 3-Pin Power-On Reset IC
V6309 3-Pin Microprocessor Reset Circuit
V6310 Ultra Low Power 3-Pin Voltage Window Surveillance
V6319 3-Pin Microprocessor Reset Circuit

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

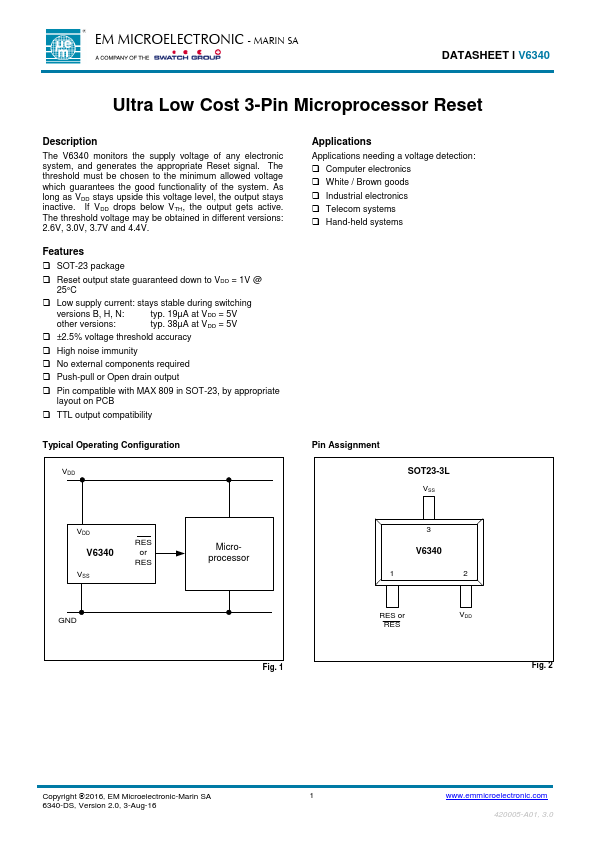

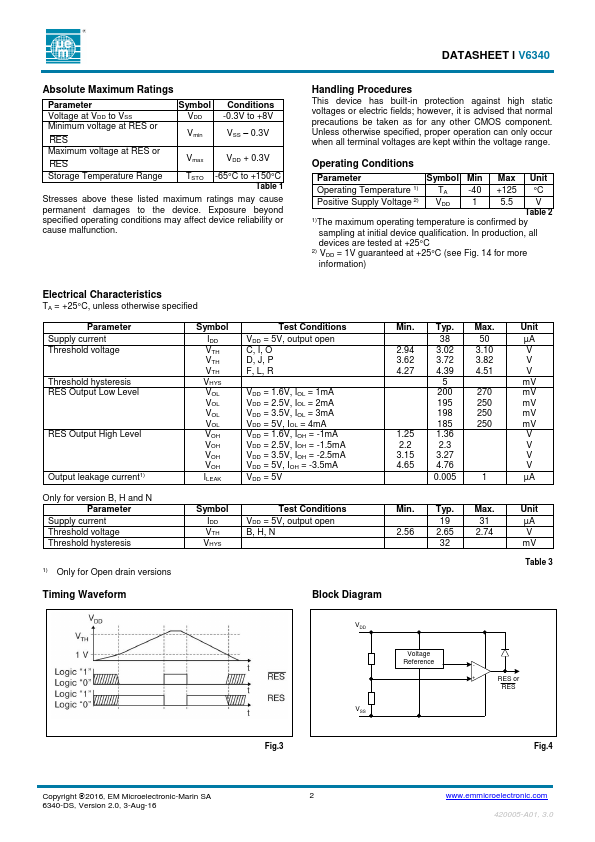

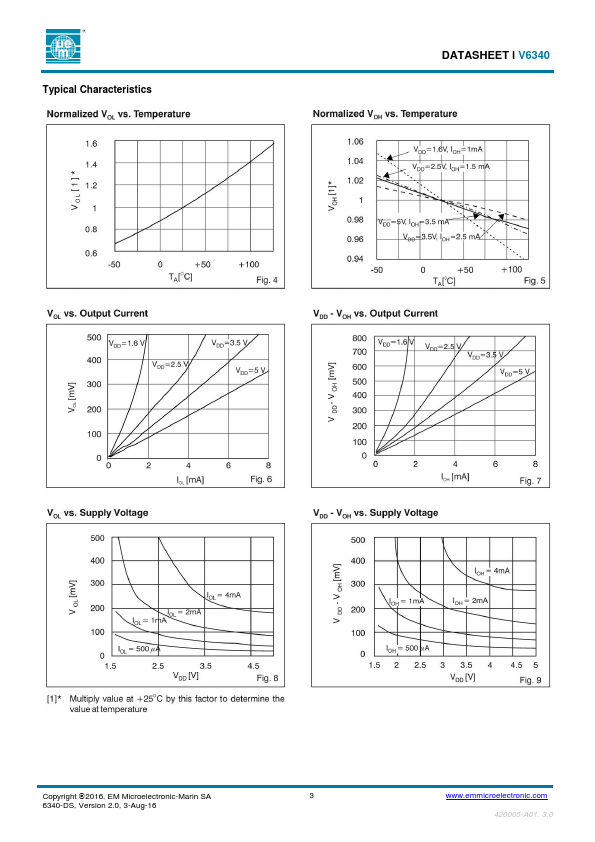

EM MICROELECTRONIC - MARIN SA DATASHEET Ɩ V6340 Ultra Low Cost 3-Pin Microprocessor Reset Description The V6340 monitors the supply voltage of any electronic system, and generates the appropriate Reset signal. The threshold must be chosen to the minimum allowed voltage which guarantees the good functionality of the system. As long as VDD stays upside this voltage level, the output stays inactive. If VDD drops below VTH, the output gets active. The threshold voltage may be obtained in different versions: 2.6V, 3.0V, 3.7V and 4.4V. Features  SOT-23 package  Reset output state guaranteed down to VDD = 1V @ 25°C  Low supply current: stays stable during switching versions B, H, N: typ. 19µA at VDD = 5V other versions: typ. 38µA at VDD = 5V  ±2.
