V6319 - 3-Pin Microprocessor Reset Circuit

Download the V6319 datasheet PDF. This datasheet also covers the V6309 variant, as both devices belong to the same 3-pin microprocessor reset circuit family and are provided as variant models within a single manufacturer datasheet.

General Description

The V6309 and V6319 are microprocessor supervisory circuits used to monitor the power supplies in µP and digital systems.

They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with 5 V powered or 3 V powered circuits.

Key Features

  • n Precision monitoring of 3 V, 3.3 V and 5 V power supply voltages n Fully specified over the temperature range of -40 to + 125 oC n 140 ms minimum power-on reset pulse width: RESET output for V6309 RESET output for V6319 n 16 µA supply current n Garanteed RESET/RESET valid to VDD = 1 V n Power supply transient immunity n No external components needed n 3-pin SOT-23 package n Fully compatible with MAX809/MAX810 and AMD809/AMD810 Typical Operating Configuration.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (V6309-EMMicroelectronic.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
V6300 Narrowband Power Line Communication Processor Vango Technologies
V630ME01 OSCILLATOR Z-Communications
V630ME02 OSCILLATOR Z-Communications
V630ME03-LF Voltage-Controlled Oscillator Z-Communications
V630ME04 OSCILLATOR Z-Communications

Other Datasheets by EM Microelectronic (Swatch Group)

Part Number Description
V6310 Ultra Low Power 3-Pin Voltage Window Surveillance
V6300 Ultra Low Power 3-Pin Power-On Reset IC
V6301 Ultra Low Power 3-Pin Power-On Reset IC
V6309 3-Pin Microprocessor Reset Circuit
V6340 Ultra Low Cost 3-Pin Microprocessor Reset

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

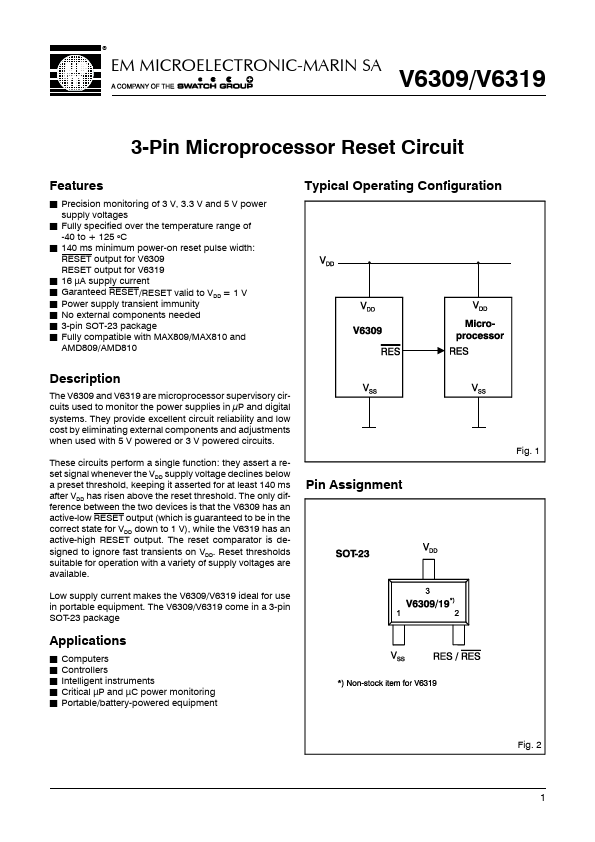

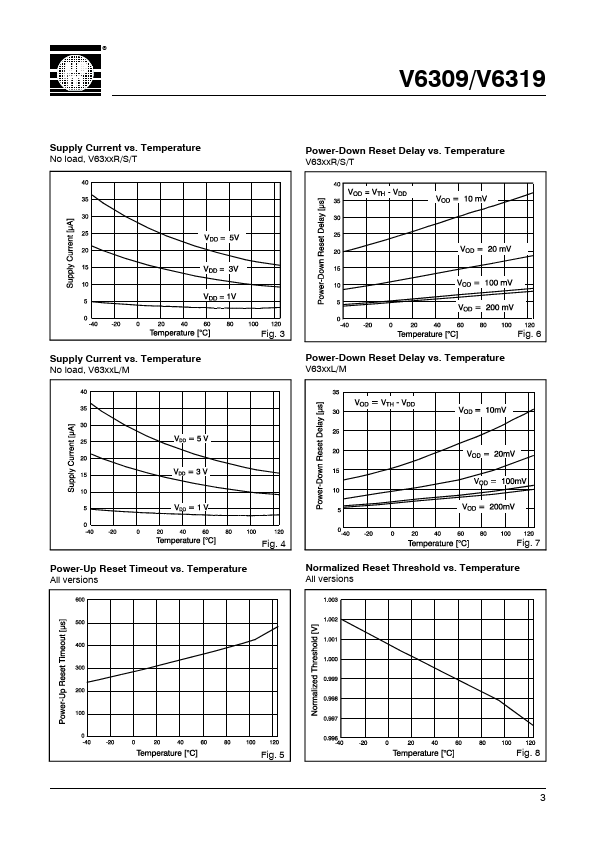

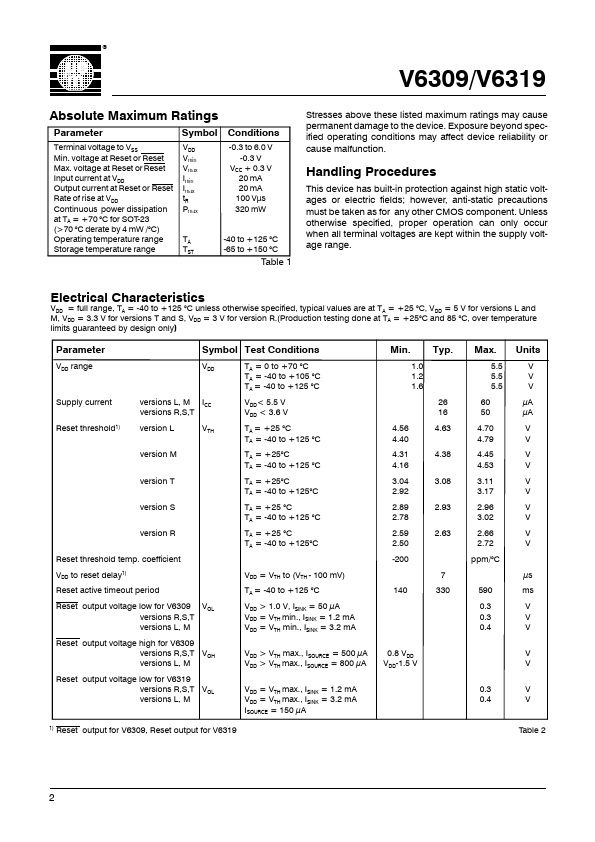

® EM MICROELECTRONIC-MARIN SA V6309/V6319 3-Pin Microprocessor Reset Circuit Features n Precision monitoring of 3 V, 3.3 V and 5 V power supply voltages n Fully specified over the temperature range of -40 to + 125 oC n 140 ms minimum power-on reset pulse width: RESET output for V6309 RESET output for V6319 n 16 µA supply current n Garanteed RESET/RESET valid to VDD = 1 V n Power supply transient immunity n No external components needed n 3-pin SOT-23 package n Fully compatible with MAX809/MAX810 and AMD809/AMD810 Typical Operating Configuration Description The V6309 and V6319 are microprocessor supervisory circuits used to monitor the power supplies in µP and digital systems.
