PCM1748 - 24-Bit Audio DIGITAL-TO-ANALOG CONVERTER

Description

The PCM1748 is a CMOS, monolithic, integrated circuit which includes stereo Digital-to-Analog Converters (DACs) and support circuitry in a small SSOP-16 package.

Features

  • q 24-BIT.

📥 Download Datasheet

Datasheet preview – PCM1748

📁 Similar Datasheet

  • PCM1748 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1742 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1701 - 18-Bit Serial Input D/A Converter (ETC)
  • PCM1753 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1753-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1754 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1754-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1755 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1789 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1789-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
Other Datasheets by Burr-Brown
  • PCM1740 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1741 - DIGITAL-TO-ANALOG CONVERTER
  • PCM1742 - 24-Bit Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1744 - 24-Bit Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1700P - dual 18-bit digital-to-analog converter
  • PCM1700U - dual 18-bit digital-to-analog converter
  • PCM1702P - 20-Bit DIGITAL-TO-ANALOG CONVERTER
  • PCM1702U - 20-Bit DIGITAL-TO-ANALOG CONVERTER

Full PDF Text Transcription

Click to expand full text

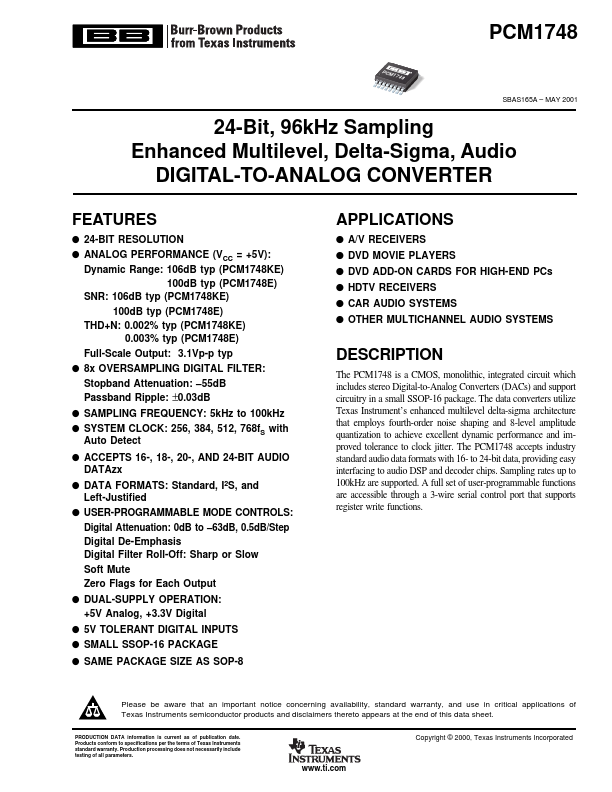

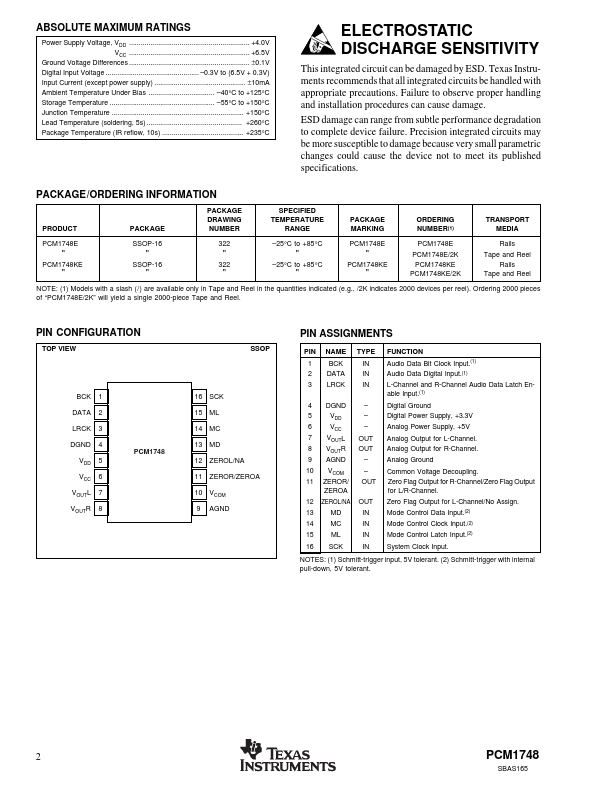

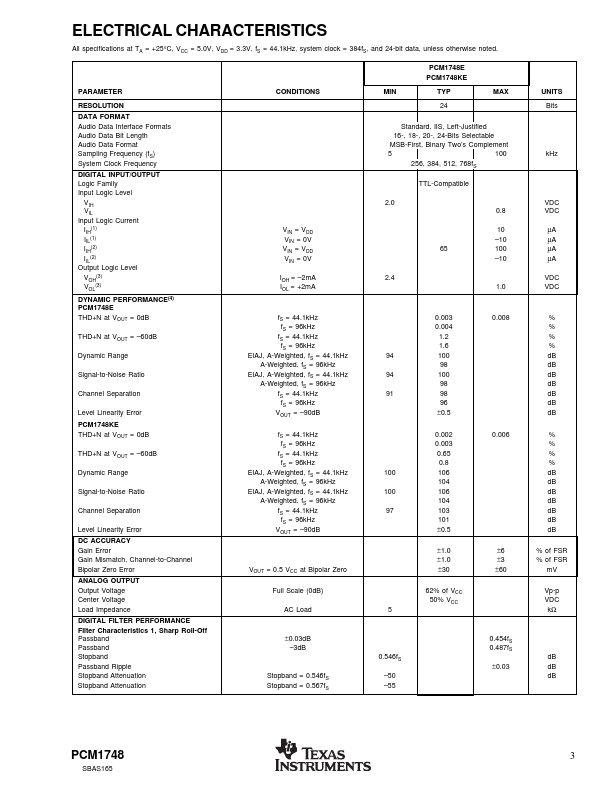

PCM1748 PCM1748 SBAS165A – MAY 2001 24-Bit, 96kHz Sampling Enhanced Multilevel, Delta-Sigma, Audio DIGITAL-TO-ANALOG CONVERTER FEATURES q 24-BIT RESOLUTION q ANALOG PERFORMANCE (VCC = +5V): Dynamic Range: 106dB typ (PCM1748KE) 100dB typ (PCM1748E) SNR: 106dB typ (PCM1748KE) 100dB typ (PCM1748E) THD+N: 0.002% typ (PCM1748KE) 0.003% typ (PCM1748E) Full-Scale Output: 3.1Vp-p typ q 8x OVERSAMPLING DIGITAL FILTER: Stopband Attenuation: –55dB Passband Ripple: ±0.03dB q SAMPLING FREQUENCY: 5kHz to 100kHz q SYSTEM CLOCK: 256, 384, 512, 768fS with Auto Detect q ACCEPTS 16-, 18-, 20-, AND 24-BIT AUDIO DATAzx q DATA FORMATS: Standard, I2S, and Left-Justified q USER-PROGRAMMABLE MODE CONTROLS: Digital Attenuation: 0dB to –63dB, 0.
