PCM1740 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER

Description

The PCM1740 is a complete stereo audio digital-toanalog converter with on-chip PLL and VCXO.

The PCM1740 is designed specifically for set-top box applications requiring high-quality audio playback, a precision tuned 27MHz master clock source, and support for multiple audio-sampling frequencies.

📥 Download Datasheet

Datasheet preview – PCM1740

📁 Similar Datasheet

  • PCM1742 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1748 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1701 - 18-Bit Serial Input D/A Converter (ETC)
  • PCM1753 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1753-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1754 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1754-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1755 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1789 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1789-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
Other Datasheets by Burr-Brown
  • PCM1741 - DIGITAL-TO-ANALOG CONVERTER
  • PCM1742 - 24-Bit Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1744 - 24-Bit Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1748 - 24-Bit Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1700P - dual 18-bit digital-to-analog converter
  • PCM1700U - dual 18-bit digital-to-analog converter
  • PCM1702P - 20-Bit DIGITAL-TO-ANALOG CONVERTER
  • PCM1702U - 20-Bit DIGITAL-TO-ANALOG CONVERTER

Full PDF Text Transcription

Click to expand full text

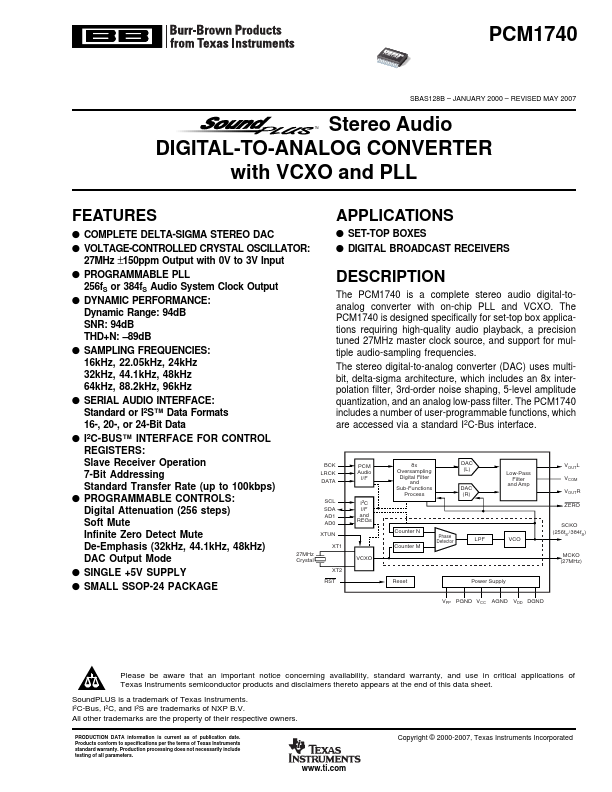

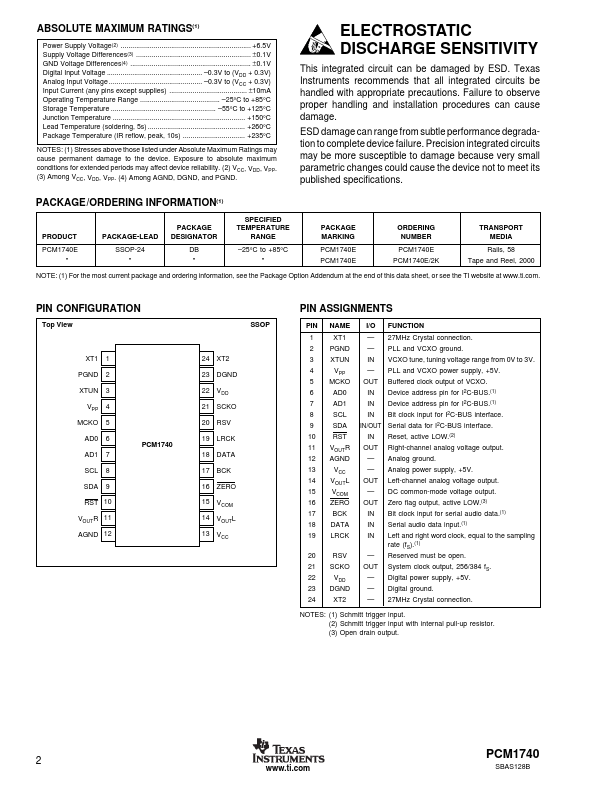

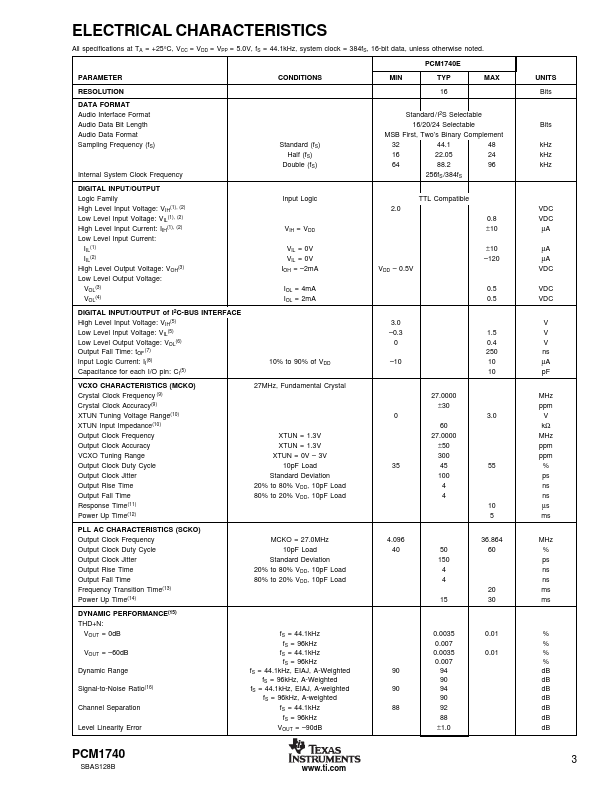

PCM1740 PCM1740 SBAS128B – JANUARY 2000 – REVISED MAY 2007 TM Stereo Audio DIGITAL-TO-ANALOG CONVERTER with VCXO and PLL FEATURES APPLICATIONS q COMPLETE DELTA-SIGMA STEREO DAC q SET-TOP BOXES q VOLTAGE-CONTROLLED CRYSTAL OSCILLATOR: 27MHz ±150ppm Output with 0V to 3V Input q DIGITAL BROADCAST RECEIVERS q PROGRAMMABLE PLL 256fS or 384fS Audio System Clock Output q DYNAMIC PERFORMANCE: Dynamic Range: 94dB SNR: 94dB THD+N: –89dB q SAMPLING FREQUENCIES: 16kHz, 22.05kHz, 24kHz 32kHz, 44.1kHz, 48kHz 64kHz, 88.2kHz, 96kHz q SERIAL AUDIO INTERFACE: Standard or I2S™ Data Formats 16-, 20-, or 24-Bit Data DESCRIPTION The PCM1740 is a complete stereo audio digital-toanalog converter with on-chip PLL and VCXO.
