PCM1742 - 24-Bit Audio DIGITAL-TO-ANALOG CONVERTER

Description

The PCM1742 is a CMOS, monolithic, integrated circuit which includes stereo digital-to-analog converters (DACs) and support circuitry in a small SSOP-16 package.

Features

  • 24-Bit Resolution.
  • Analog Performance (VCC = 5 V):.
  • Dynamic Range:.
  • 106 dB, Typical (PCM1742KE).
  • 100 dB, Typical (PCM1742E).
  • SNR:.
  • 106 dB, Typical (PCM1742KE).
  • 100 dB, Typical (PCM1742E).
  • THD+N:.
  • 0.002%, Typical (PCM1742KE).
  • 0.003%, Typical (PCM1742E).
  • Full-Scale Output: 3.1 Vp-p, Typical.
  • 4x/8x Oversampling Digital Filter: Stop-Band Attenuation:.
  • 55 dB Pass-Band Ripple:.

📥 Download Datasheet

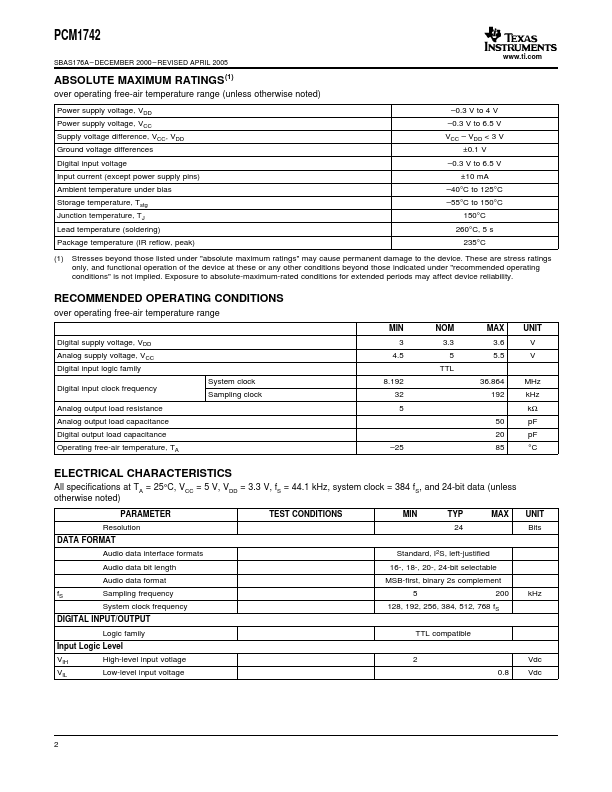

Datasheet preview – PCM1742

📁 Similar Datasheet

  • PCM1742 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1748 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1701 - 18-Bit Serial Input D/A Converter (ETC)
  • PCM1753 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1753-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1754 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1754-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1755 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1789 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1789-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
Other Datasheets by Burr-Brown
  • PCM1740 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1741 - DIGITAL-TO-ANALOG CONVERTER
  • PCM1744 - 24-Bit Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1748 - 24-Bit Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1700P - dual 18-bit digital-to-analog converter
  • PCM1700U - dual 18-bit digital-to-analog converter
  • PCM1702P - 20-Bit DIGITAL-TO-ANALOG CONVERTER
  • PCM1702U - 20-Bit DIGITAL-TO-ANALOG CONVERTER

Full PDF Text Transcription

Click to expand full text
PCM1742 www.ti.com SBAS176A – DECEMBER 2000 – REVISED APRIL 2005 24-Bit, 192-kHz Sampling, Enhanced Multilevel, Delta-Sigma, Audio Digital-to-Analog Converter FEATURES • 24-Bit Resolution • Analog Performance (VCC = 5 V): – Dynamic Range: • 106 dB, Typical (PCM1742KE) • 100 dB, Typical (PCM1742E) – SNR: • 106 dB, Typical (PCM1742KE) • 100 dB, Typical (PCM1742E) – THD+N: • 0.002%, Typical (PCM1742KE) • 0.003%, Typical (PCM1742E) – Full-Scale Output: 3.1 Vp-p, Typical • 4x/8x Oversampling Digital Filter: Stop-Band Attenuation: –55 dB Pass-Band Ripple: ±0.
