DIR9001-Q1 - 96-kHz 24-Bit Digital Audio Interface Receiver

General Description

The DIR9001-Q1 is a digital audio interface receiver that can receive a 28-kHz to 108-kHz samplingfrequency, 24-bit-data-word, biphase-encoded signal.

Key Features

  • 1.
  • 23 One-Chip Digital Audio Interface Receiver (DIR) Including Low-Jitter Clock-Recovery System.
  • Compliant With Digital Audio Interface Standards: IEC60958 (former IEC958), JEITA CPR-1205 (former EIAJ CP-1201, CP-340), AES3, EBU tech3250.
  • Clock Recovery and Data Decode From Biphase Input Signal, Generally Called S/PDIF, EIAJ CP-1201, IEC60958, AES/EBU.
  • Biphase Input Signal Sampling Frequency (fS) Range: 28 kHz to 108 kHz.
  • Low-Jitter Recovered System C.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DIR9001 96-kHz 24-Bit Digital Audio Interface Receiver Texas Instruments

Other Datasheets by Burr-Brown (Texas Instruments)

Part Number Description
DIR9001 96-kHz 24-Bit Digital Audio Interface Receiver
DIR1701 DIGITAL AUDIO INTERFACE RECEIVER
DIR1703 DIGITAL AUDIO INTERFACE RECEIVER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

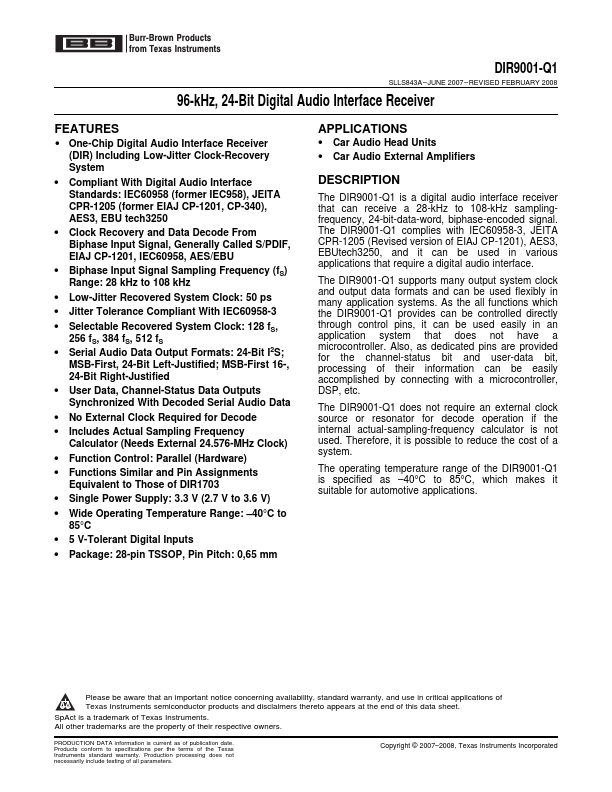

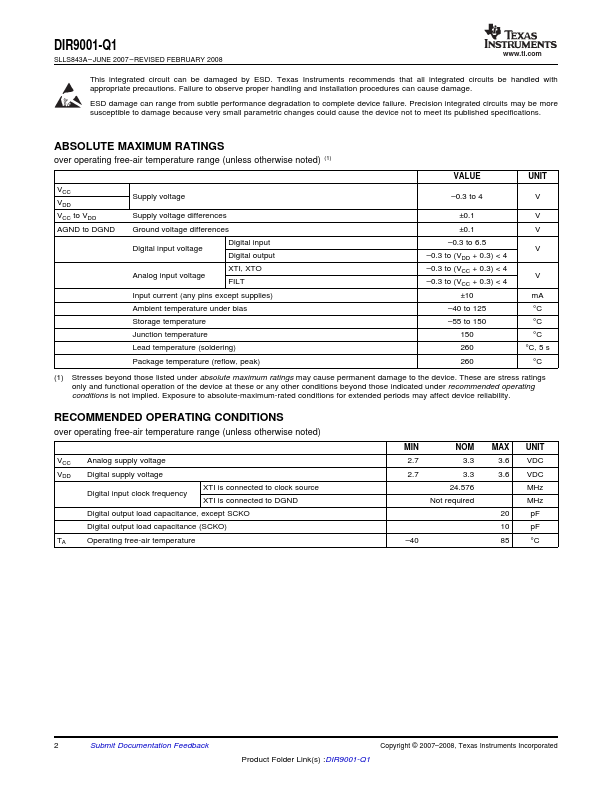

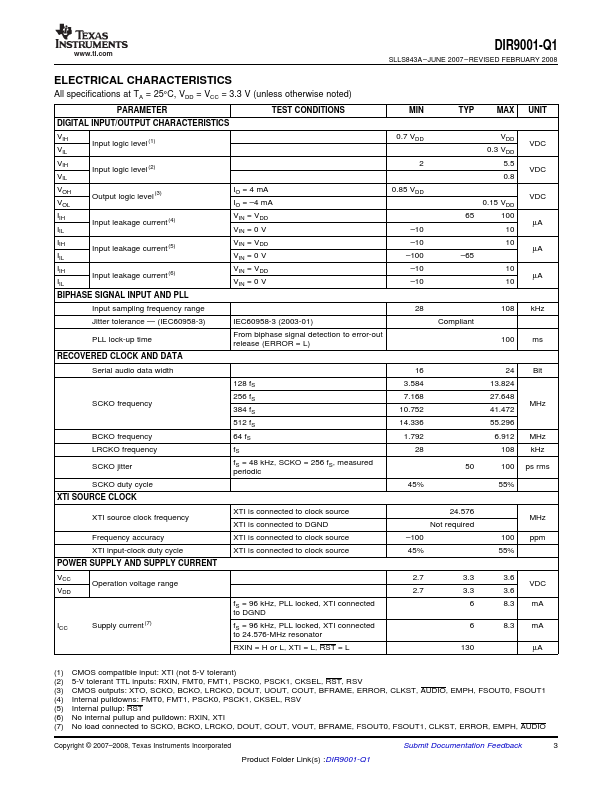

BurrĆBrown Products from Texas Instruments DIR9001-Q1 SLLS843A – JUNE 2007 – REVISED FEBRUARY 2008 96-kHz, 24-Bit Digital Audio Interface Receiver FEATURES 1 •23 One-Chip Digital Audio Interface Receiver (DIR) Including Low-Jitter Clock-Recovery System • Compliant With Digital Audio Interface Standards: IEC60958 (former IEC958), JEITA CPR-1205 (former EIAJ CP-1201, CP-340), AES3, EBU tech3250 • Clock Recovery and Data Decode From Biphase Input Signal, Generally Called S/PDIF, EIAJ CP-1201, IEC60958, AES/EBU • Biphase Input Signal Sampling Frequency (fS) Range: 28 kHz to 108 kHz • Low-Jitter Recovered System Clock: 50 ps • Jitter Tolerance Compliant With IEC60958-3 • Selectable Recovered System Clock: 128 fS, 256 fS, 384 fS, 512 fS • Serial Audio Data Output Formats: 24-Bit I2S; MSB-First,
