AO6432 - 30V N-Channel MOSFET

General Description

The AO6432 uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

This device is suitable for use as a load switch or in PWM applications.

The source leads are separated to allow a Kelvin connection to the source, which may be used to bypass the source inductance.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO6432 N-Channel MOSFET Kexin
AO6400 N-Channel MOSFET Kexin
AO6402A N-Channel MOSFET Kexin
AO6403 P-Channel MOSFET VBsemi
AO6404 N-Channel MOSFET Kexin

Other Datasheets by Alpha & Omega Semiconductors

Part Number Description
AO6400 30V N-Channel MOSFET
AO6401 30V P-Channel MOSFET
AO6401A P-Channel MOSFET
AO6402 30V N-Channel MOSFET
AO6402A 30V N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

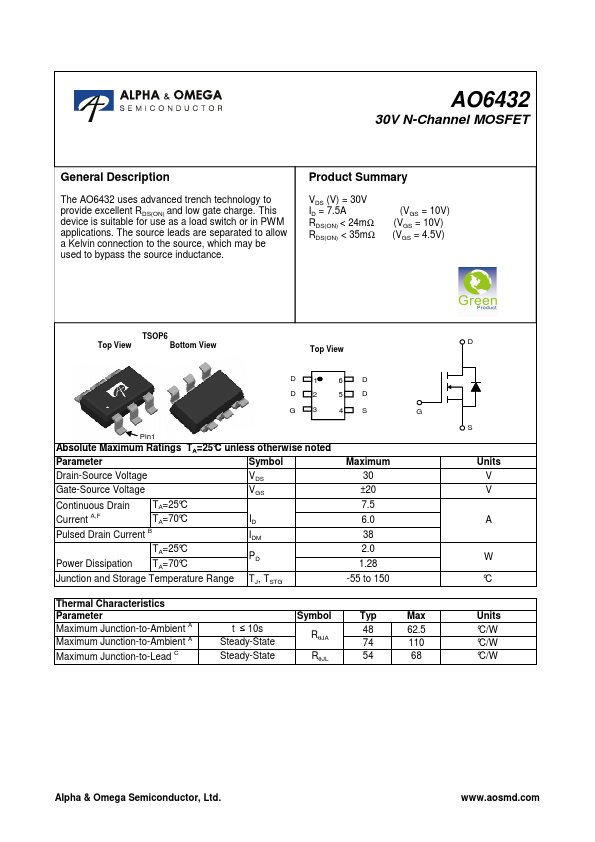

AO6432 30V N-Channel MOSFET General Description The AO6432 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. This device is suitable for use as a load switch or in PWM applications. The source leads are separated to allow a Kelvin connection to the source, which may be used to bypass the source inductance. Product Summary VDS (V) = 30V ID = 7.5A RDS(ON) < 24mΩ RDS(ON) < 35mΩ (VGS = 10V) (VGS = 10V) (VGS = 4.
