AO6400 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 30V.
  • ID = 6.9 A (VGS = 10V).
  • RDS(ON) ＜ 28mΩ (VGS = 10V).
  • RDS(ON) ＜ 33mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 52mΩ (VGS = 2.5V) ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 D G S 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 +0.1 1.1 -0.1 0.55 0.4 MOSFET Unit: mm 0.15 +0.02 -0.02 1 Drain 4 Source 2 Drain 5 Drain 3 Gate 6 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO6400 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO6401 30V P-Channel MOSFET Alpha & Omega Semiconductors
AO6401A P-Channel MOSFET Alpha & Omega Semiconductors
AO6402 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO6402A 30V N-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO6402A N-Channel MOSFET
AO6404 N-Channel MOSFET
AO6408 N-Channel MOSFET
AO6424A N-Channel MOSFET
AO6432 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

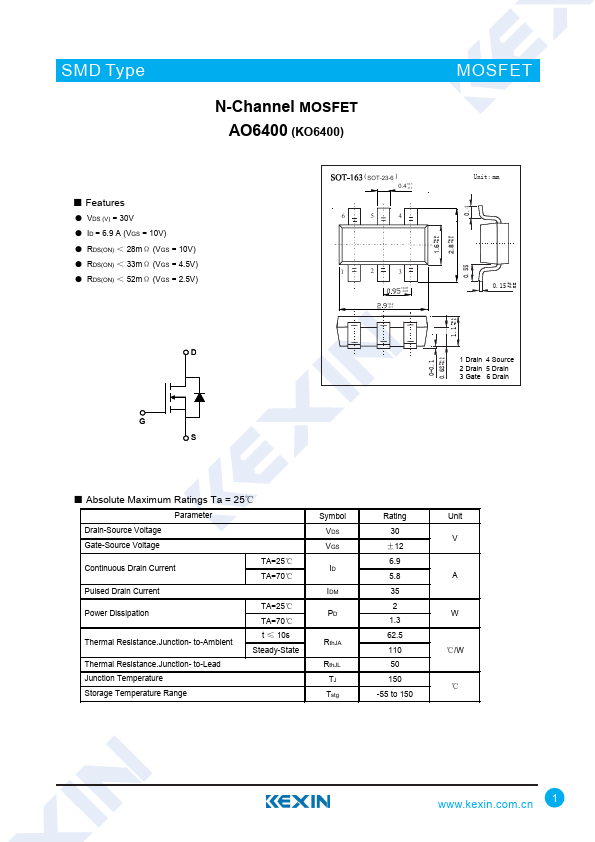

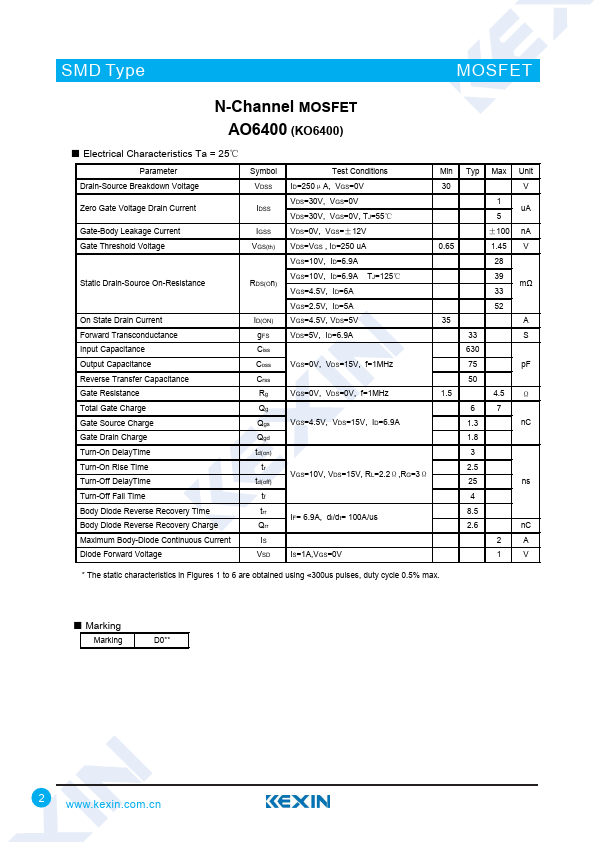

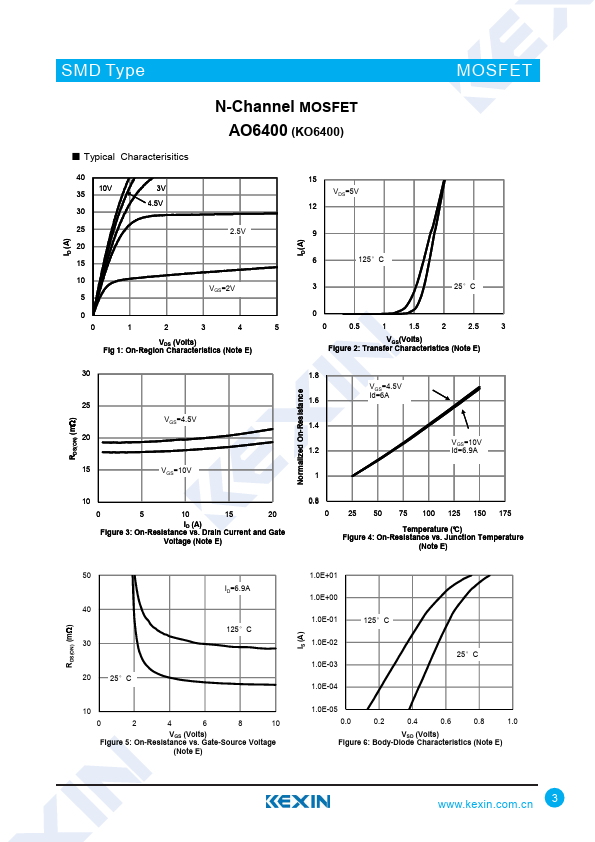

SMD Type N-Channel MOSFET AO6400 (KO6400) ■ Features ● VDS (V) = 30V ● ID = 6.9 A (VGS = 10V) ● RDS(ON) ＜ 28mΩ (VGS = 10V) ● RDS(ON) ＜ 33mΩ (VGS = 4.5V) ● RDS(ON) ＜ 52mΩ (VGS = 2.5V) ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 D G S 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 +0.1 1.1 -0.1 0.55 0.4 MOSFET Unit: mm 0.15 +0.02 -0.02 1 Drain 4 Source 2 Drain 5 Drain 3 Gate 6 Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current TA=25℃ TA=70℃ Pulsed Drain Current Power Dissipation TA=25℃ TA=70℃ Thermal Resistance.Junction- to-Ambient t ≤ 10s Steady-State Thermal Resistance.
