AO6404 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 20V.
  • ID = 8.6 A (VGS = 10V).
  • RDS(ON) ＜ 17mΩ (VGS = 10V).
  • RDS(ON) ＜ 18mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 24mΩ (VGS = 2.5V).
  • RDS(ON) ＜ 33mΩ (VGS = 1.8V).
  • ESD Rating: 2000V HBM ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 +0.1 1.1 -0.1 D G S 0-0.1 +0.1 0.68 -0.1 1 Drain 4 Source 2 Drain 5 Drain 3 Gate 6 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Vol.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO6404 N-Channel MOSFET Alpha & Omega Semiconductors
AO6400 30V N-Channel MOSFET Alpha & Omega Semiconductors
AO6401 30V P-Channel MOSFET Alpha & Omega Semiconductors
AO6401A P-Channel MOSFET Alpha & Omega Semiconductors
AO6402 30V N-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO6400 N-Channel MOSFET
AO6402A N-Channel MOSFET
AO6408 N-Channel MOSFET
AO6424A N-Channel MOSFET
AO6432 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

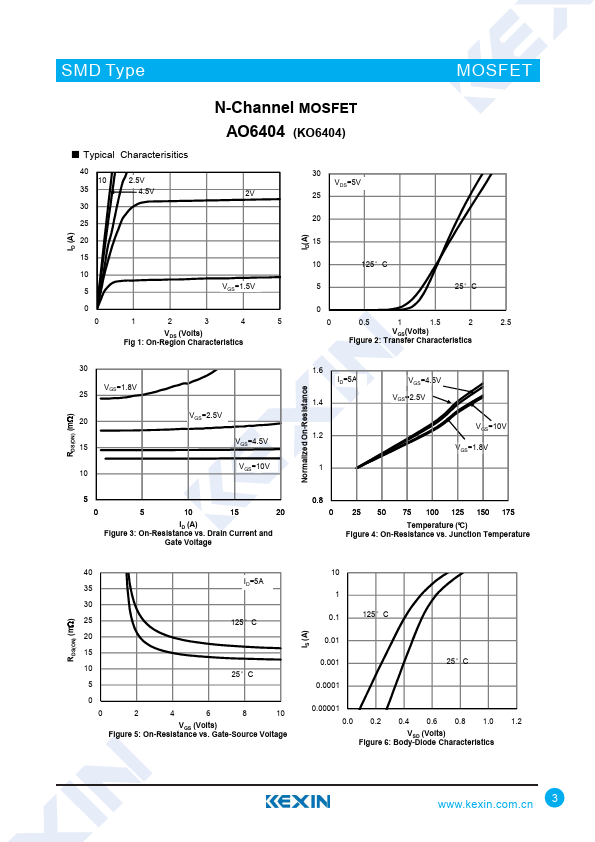

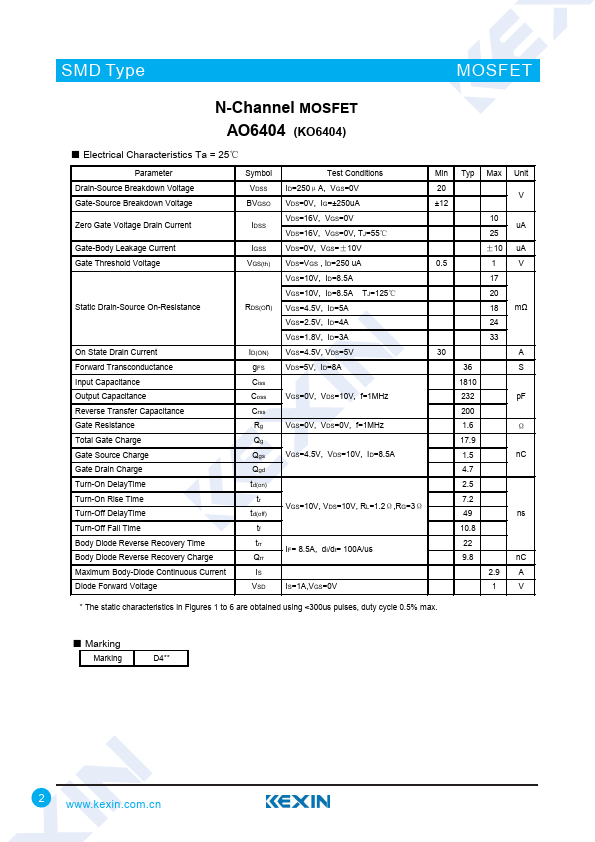

SMD Type N-Channel MOSFET AO6404 (KO6404) MOSFET ■ Features ● VDS (V) = 20V ● ID = 8.6 A (VGS = 10V) ● RDS(ON) ＜ 17mΩ (VGS = 10V) ● RDS(ON) ＜ 18mΩ (VGS = 4.5V) ● RDS(ON) ＜ 24mΩ (VGS = 2.5V) ● RDS(ON) ＜ 33mΩ (VGS = 1.8V) ● ESD Rating: 2000V HBM ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 +0.1 1.1 -0.1 D G S 0-0.1 +0.1 0.68 -0.1 1 Drain 4 Source 2 Drain 5 Drain 3 Gate 6 Drain ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
