G050VVN01.0 Datasheet Text
- Preliminary Specification
- Final Specification
Module Model Name
5.0 Inch Color TFT-LCD G050VVN01.0
Customer
Date
Approved by
Date
Grace Hung
2014/06/25
Checked & Approved by
Date
Prepared by
Date
Elaine Hsu
2014/06/25
Note: This Specification is subject to change without notice.
General Display Business Division / AU Optronics corporation
½ APPROVAL FOR SPECIFICATIONS ONLY (Spec. Ver. 1.4 ) ½ APPROVAL FOR SPECIFICATIONS AND ES SAMPLE (Spec. Ver. 1.4 ) ½ APPROVAL FOR SPECIFICATIONS AND CS SAMPLE (Spec. Ver. 1.4 ) ½ CUSTOMER REMARK :
G050VVN01.0 Ver. 1.4 1/28

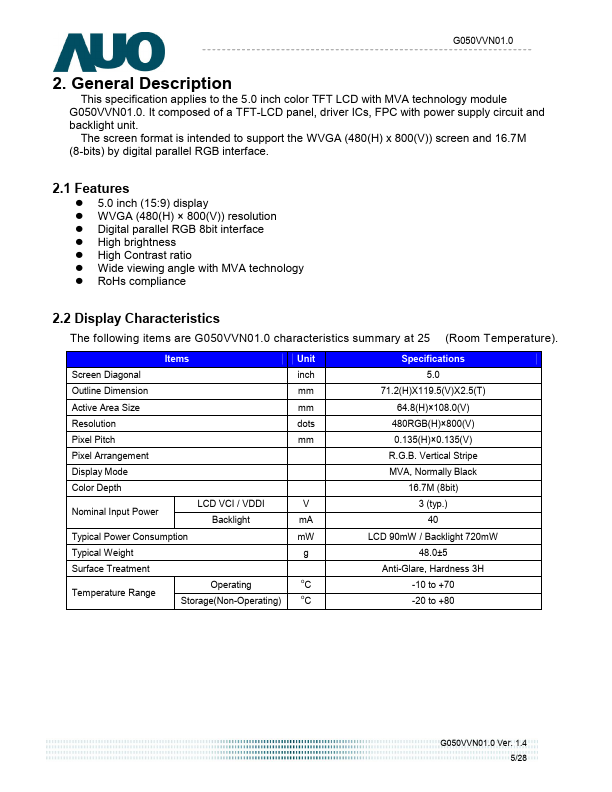

2. General Description
This specification applies to the 5.0 inch color TFT LCD with MVA technology module G050VVN01.0. It posed of a TFT-LCD panel, driver ICs, FPC with power supply circuit and backlight unit.
The screen format is intended to support the WVGA (480(H) x 800(V)) screen and 16.7M (8-bits) by digital parallel RGB interface.
2.1 Features
- 5.0 inch (15:9) display
- WVGA (480(H) × 800(V)) resolution
- Digital parallel RGB 8bit interface
- High brightness
- High Contrast ratio
- Wide viewing angle with MVA technology...
