G050TAN01.0 Datasheet Text

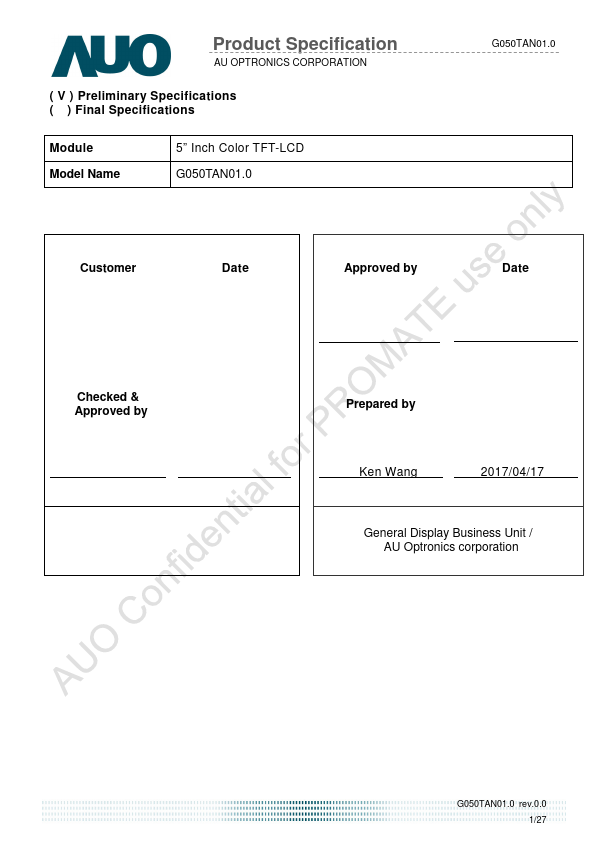

Product Specification
AU OPTRONICS CORPORATION
( V ) Preliminary Specifications ( ) Final Specifications
Module Model Name
5” Inch Color TFT-LCD G050TAN01.0
Customer
Date
Approved by
Date
Checked & Approved by
Prepared by
Ken Wang
2017/04/17
General Display Business Unit / AU Optronics corporation
G050TAN01.0 rev.0.0 1/27
Product Specification
AU OPTRONICS CORPORATION

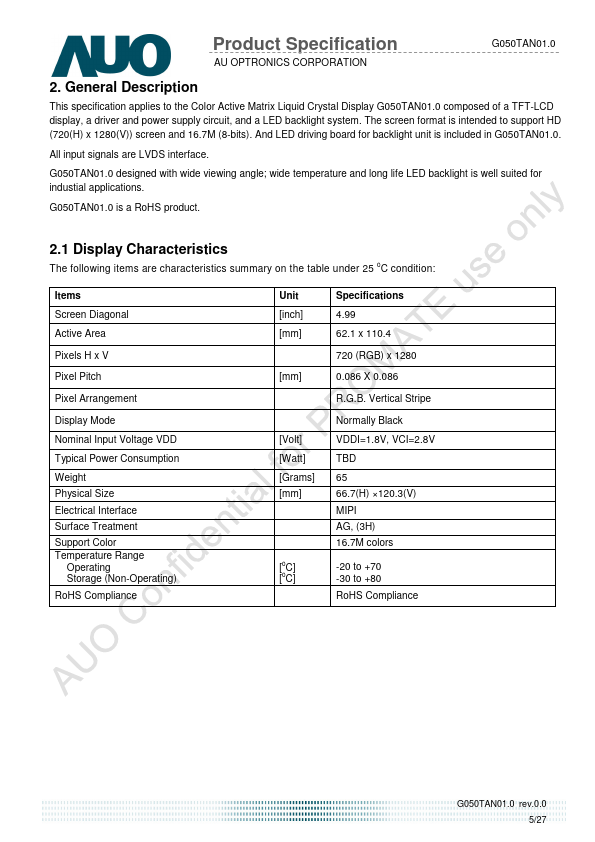

2. General Description
This specification applies to the Color Active Matrix Liquid Crystal Display G050TAN01.0 posed of a TFT-LCD display, a driver and power supply circuit, and a LED backlight system. The screen format is intended to support HD (720(H) x 1280(V)) screen and 16.7M (8-bits). And LED driving board for backlight unit is included in G050TAN01.0.
All input signals are LVDS interface.
G050TAN01.0 designed with wide viewing angle; wide temperature and long life LED backlight is well suited for industial applications.
G050TAN01.0 is a RoHS product.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 oC condition:
Items Screen Diagonal Active Area
Pixels H x V
Pixel Pitch
Pixel Arrangement
Display Mode
Nominal Input Voltage VDD Typical Power Consumption Weight Physical Size Electrical Interface Surface Treatment Support Color Temperature Range...
