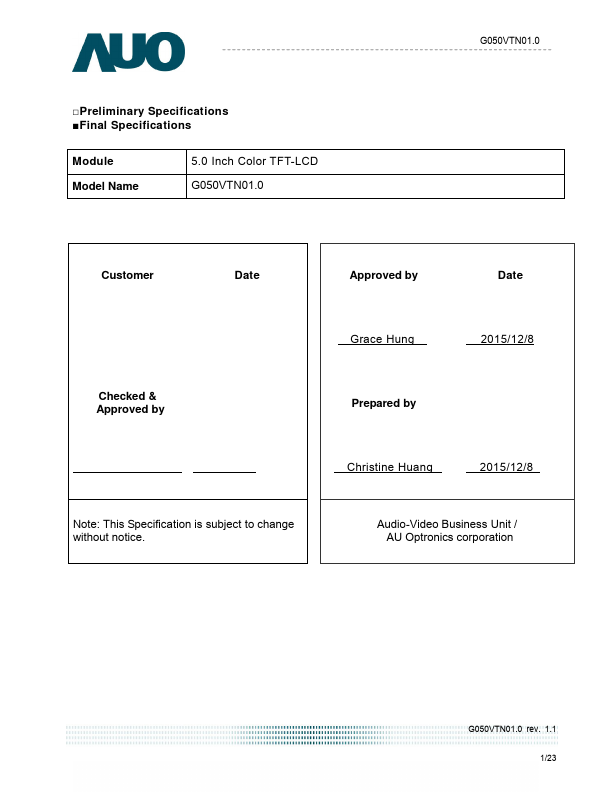

G050VTN01.0 Datasheet Text
- Preliminary Specifications
- Final Specifications
Module Model Name
5.0 Inch Color TFT-LCD G050VTN01.0
Customer
Date
Approved by
Date
Checked & Approved by
Note: This Specification is subject to change without notice.
Grace Hung
2015/12/8
Prepared by
Christine Huang
2015/12/8
Audio-Video Business Unit / AU Optronics corporation
G050VTN01.0 rev. 1.1 1/23

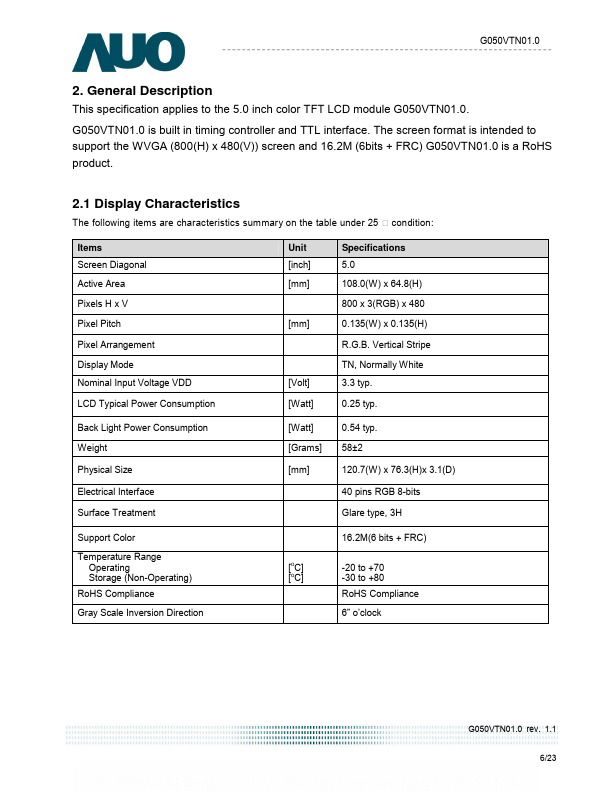

2. General Description
This specification applies to the 5.0 inch color TFT LCD module G050VTN01.0.
G050VTN01.0 is built in timing controller and TTL interface. The screen format is intended to support the WVGA (800(H) x 480(V)) screen and 16.2M (6bits + FRC) G050VTN01.0 is a RoHS product.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 condition:
Items Screen Diagonal Active Area Pixels H x V Pixel Pitch Pixel Arrangement Display Mode Nominal Input Voltage VDD LCD Typical Power Consumption
Back Light Power Consumption Weight Physical Size Electrical Interface Surface Treatment
Unit [inch] [mm]
[mm]
[Volt] [Watt] [Watt] [Grams] [mm]
Specifications 5.0 108.0(W) x 64.8(H) 800 x 3(RGB) x 480 0.135(W) x 0.135(H) R.G.B. Vertical Stripe TN, Normally White 3.3 typ. 0.25 typ.
0.54 typ. 58±2 120.7(W) x 76.3(H)x 3.1(D) 40 pins RGB 8-bits Glare type, 3H

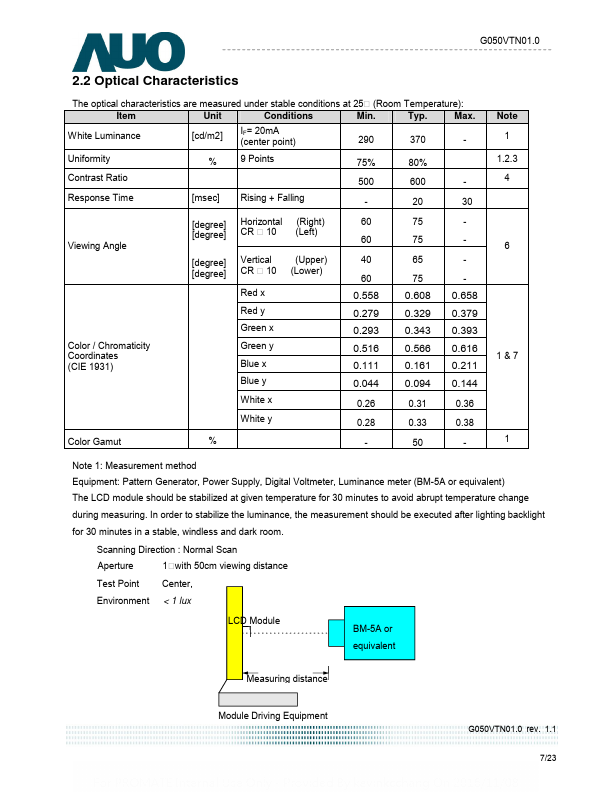

Support Color...
