UJ4SC075006K4S - 750V SiC Cascode JFET

onsemi

The UJ4SC075006K4S by onsemi is a 750V SiC Cascode JFET. Below is the official datasheet preview.

📥 Download Datasheet

UJ4SC075006K4S 750V SiC Cascode JFET by onsemi - Datasheet Preview — Official preview page of the UJ4SC075006K4S 750V SiC Cascode JFET datasheet (onsemi).

Datasheet Details

Part number	UJ4SC075006K4S
Manufacturer	onsemi
File Size	440.84 KB
Description	750V SiC Cascode JFET
Datasheet	UJ4SC075006K4S-onsemi.pdf

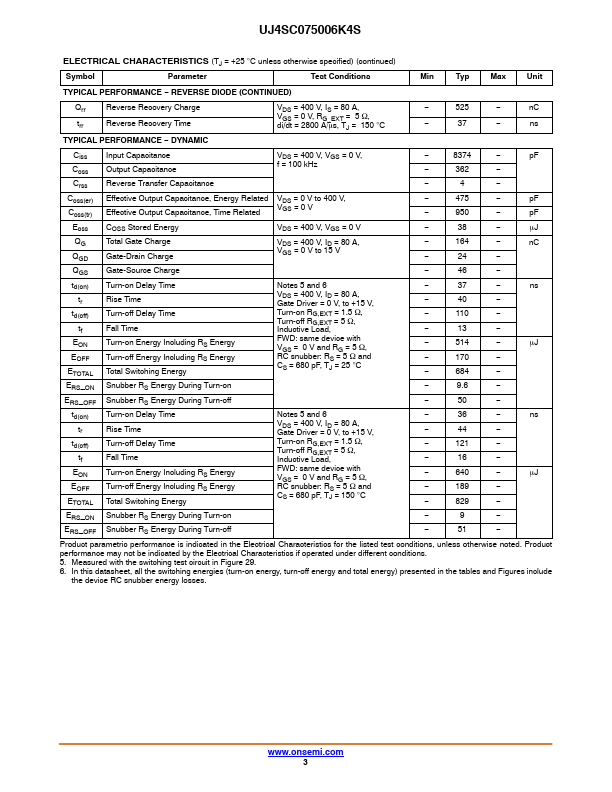

Additional preview pages of the UJ4SC075006K4S datasheet.

UJ4SC075006K4S Product details

Description

The UJ4SC075006K4S is a 750 V, 5.9 mW G4 SiC FET.

Features

On-Resistance RDS(on) : 5.9 mW (typ).
Operating Temperature: 175 °C (Max).
Excellent Reverse Recovery: Qrr = 440 nC.
Low Body Diode VFSD: 1.03 V.
Low Gate Charge : QG = 164 nC.
Threshold Voltage VG(th): 4.7 V (typ) Allowing 0 to 15 V Drive.
Low Intrinsic Capacitance.
ESD Protected: HBM Class 2.
TO-247-4L Package for Faster Switching, Clean Gate Waveforms.
This Device is Pb-Free, Halogen Free and is RoHS Co.
