UJ4SC075011K4S - SiC JFET

ON Semiconductor

The UJ4SC075011K4S by ON Semiconductor is a SiC JFET. Below is the official datasheet preview.

📥 Download Datasheet

UJ4SC075011K4S SiC JFET by ON Semiconductor - Datasheet Preview — Official preview page of the UJ4SC075011K4S SiC JFET datasheet (ON Semiconductor).

Datasheet Details

Part number	UJ4SC075011K4S
Manufacturer	ON Semiconductor
File Size	424.85 KB
Description	SiC JFET
Datasheet	UJ4SC075011K4S-ONSemiconductor.pdf

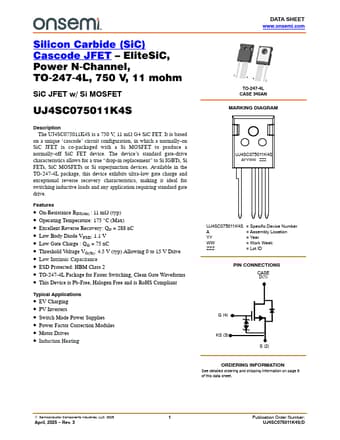

Additional preview pages of the UJ4SC075011K4S datasheet.

UJ4SC075011K4S Product details

Description

The UJ4SC075011K4S is a 750 V, 11 mW G4 SiC FET.

Features

On-Resistance RDS(on) : 11 mW (typ).
Operating Temperature: 175 °C (Max).
Excellent Reverse Recovery: Qrr = 288 nC.
Low Body Diode VFSD: 1.1 V.
Low Gate Charge : QG = 75 nC.
Threshold Voltage VG(th): 4.5 V (typ) Allowing 0 to 15 V Drive.
Low Intrinsic Capacitance.
ESD Protected: HBM Class 2.
TO-247-4L Package for Faster Switching, Clean Gate Waveforms.
This Device is Pb-Free, Halogen Free and is RoHS Compl.
