UJ4C075044B7S - SiC Cascode JFET

ON Semiconductor

The UJ4C075044B7S by ON Semiconductor is a SiC Cascode JFET. Below is the official datasheet preview.

📥 Download Datasheet

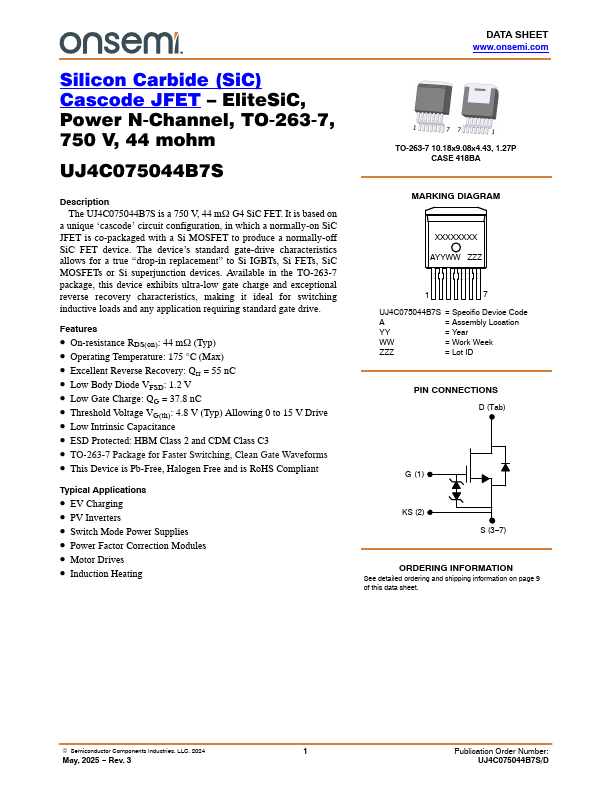

UJ4C075044B7S SiC Cascode JFET by ON Semiconductor - Datasheet Preview — Official preview page of the UJ4C075044B7S SiC Cascode JFET datasheet (ON Semiconductor).

Datasheet Details

Part number	UJ4C075044B7S
Manufacturer	ON Semiconductor
File Size	664.49 KB
Description	SiC Cascode JFET
Datasheet	UJ4C075044B7S-ONSemiconductor.pdf

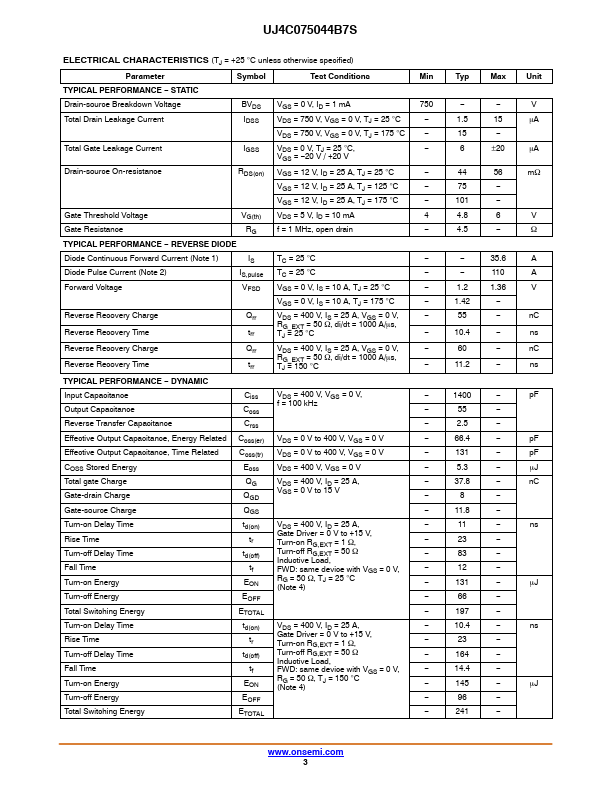

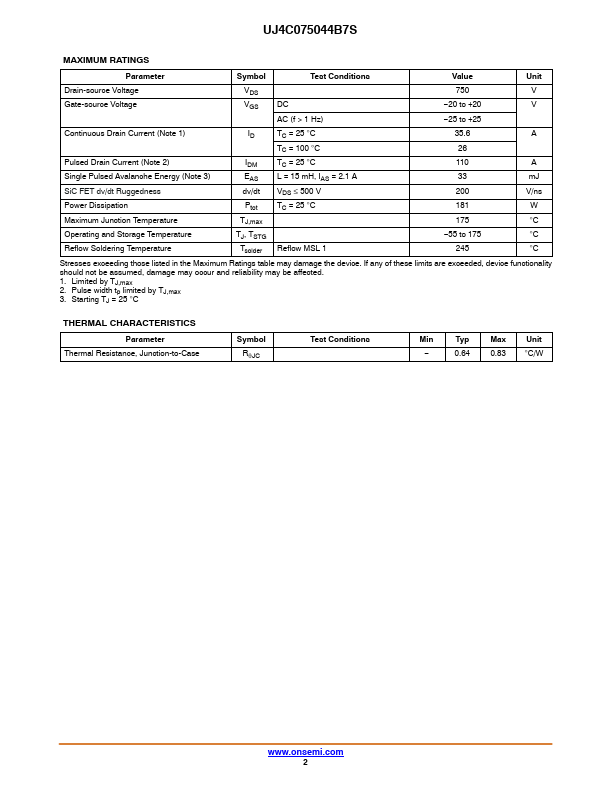

Additional preview pages of the UJ4C075044B7S datasheet.

UJ4C075044B7S Product details

Description

The UJ4C075044B7S is a 750 V, 44 mW G4 SiC FET.

Features

On-resistance RDS(on): 44 mW (Typ).
Operating Temperature: 175 °C (Max).
Excellent Reverse Recovery: Qrr = 55 nC.
Low Body Diode VFSD: 1.2 V.
Low Gate Charge: QG = 37.8 nC.
Threshold Voltage VG(th): 4.8 V (Typ) Allowing 0 to 15 V Drive.
Low Intrinsic Capacitance.
ESD Protected: HBM Class 2 and CDM Class C3.
TO-263-7 Package for Faster Switching, Clean Gate Waveforms.
This Device is Pb-Free, Halogen Free an.
