UJ4C075018K4S - 750V SiC Cascode JFET

onsemi

The UJ4C075018K4S by onsemi is a 750V SiC Cascode JFET. Below is the official datasheet preview.

📥 Download Datasheet

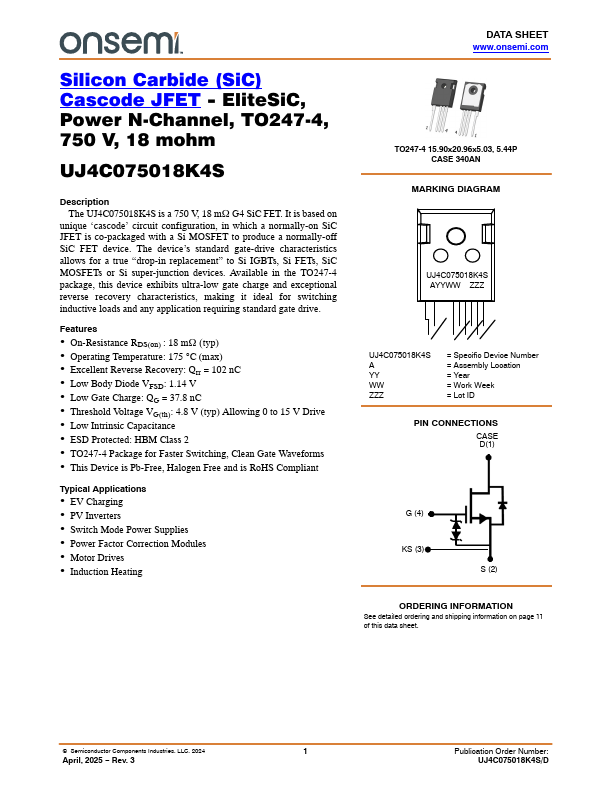

UJ4C075018K4S 750V SiC Cascode JFET by onsemi - Datasheet Preview — Official preview page of the UJ4C075018K4S 750V SiC Cascode JFET datasheet (onsemi).

Datasheet Details

Part number	UJ4C075018K4S
Manufacturer	onsemi
File Size	675.18 KB
Description	750V SiC Cascode JFET
Datasheet	UJ4C075018K4S-onsemi.pdf

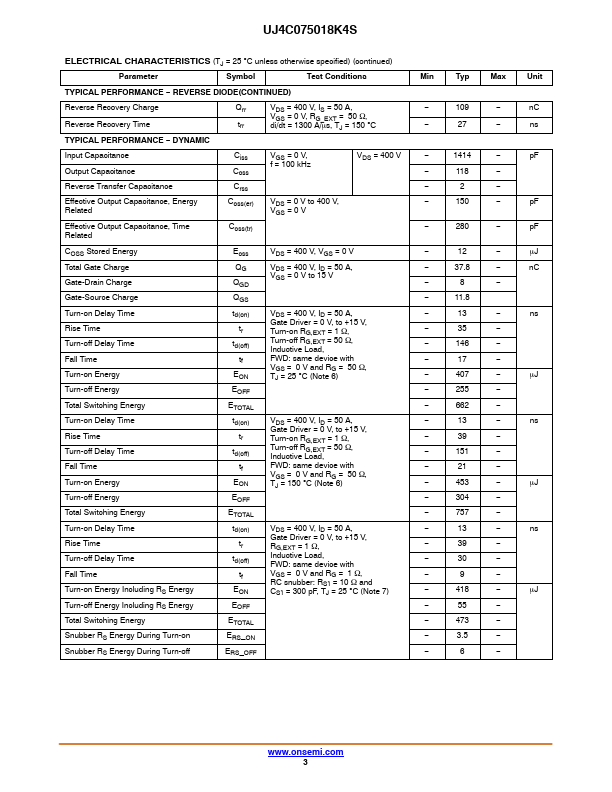

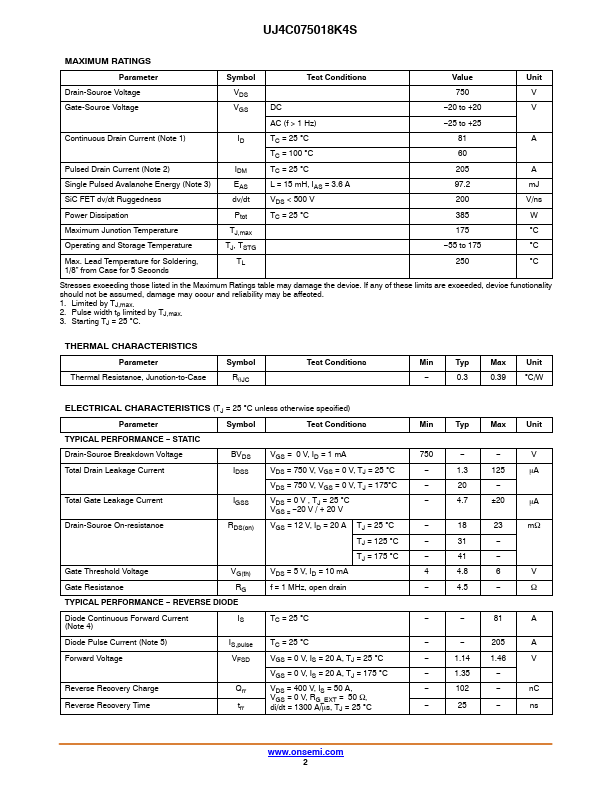

Additional preview pages of the UJ4C075018K4S datasheet.

UJ4C075018K4S Product details

Description

The UJ4C075018K4S is a 750 V, 18 mW G4 SiC FET.

Features

On-Resistance RDS(on) : 18 mW (typ).
Operating Temperature: 175 C (max).
Excellent Reverse Recovery: Qrr = 102 nC.
Low Body Diode VFSD: 1.14 V.
Low Gate Charge: QG = 37.8 nC.
Threshold Voltage VG(th): 4.8 V (typ) Allowing 0 to 15 V Drive.
Low Intrinsic Capacitance.
ESD Protected: HBM Class 2.
TO247-4 Package for Faster Switching, Clean Gate Waveforms.
This Device is Pb-Free, Halogen Free and is RoHS Compliant Typical.
