NVXK2TR40WXT - EliteSiC Power Module

onsemi

📥 Download Datasheet

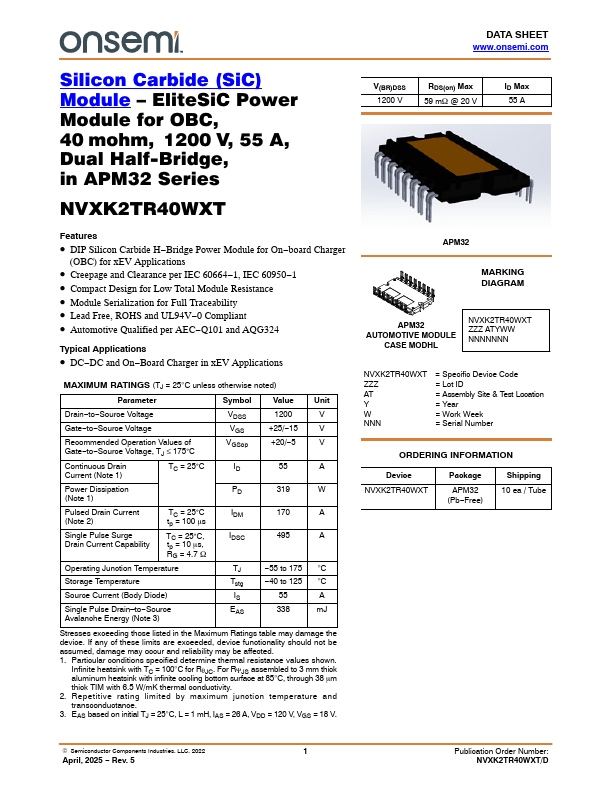

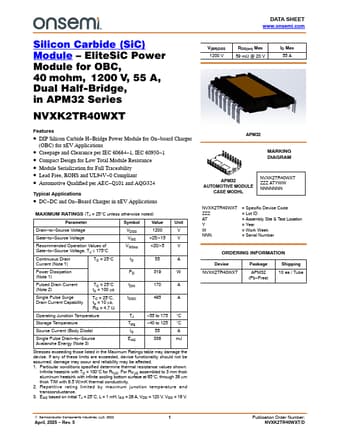

NVXK2TR40WXT Datasheet Preview — Preview of NVXK2TR40WXT PDF

Datasheet Details

Part number	NVXK2TR40WXT
Manufacturer	onsemi
File Size	820.87 KB
Description	EliteSiC Power Module
Datasheet	NVXK2TR40WXT-onsemi.pdf

NVXK2TR40WXT Product details

Description

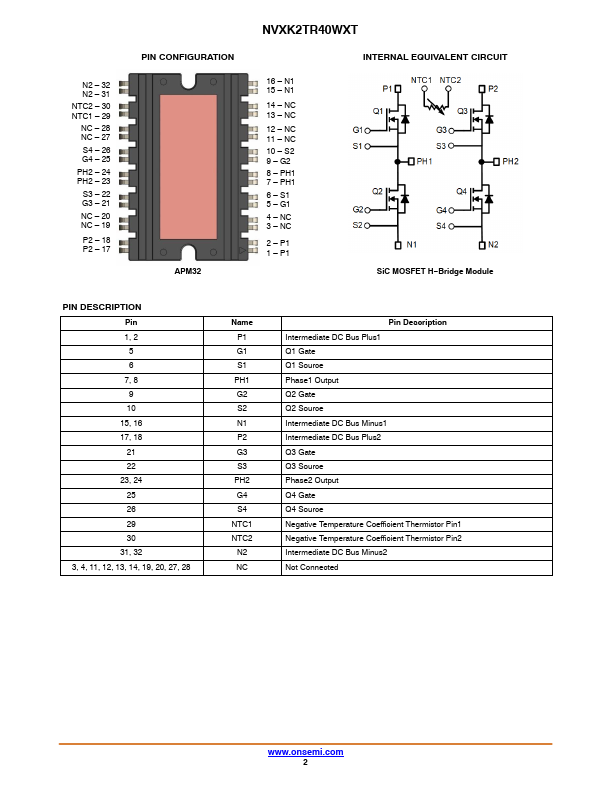

Pin 1, 2 5 6 7, 8 9 10 15, 16 17, 18 21 22 23, 24 25 26 29 30 31, 32 3, 4, 11, 12, 13, 14, 19, 20, 27, 28 Name P1 G1 S1 PH1 G2 S2 N1 P2 G3 S3 PH2 G4 S4 NTC1 NTC2 N2 NC Pin Description Intermediate DC Bus Plus1 Q1 Gate Q1 Source Phase1 Output Q2 Gate Q2 Source Intermediate DC Bus Minus1 Intermediate DC Bus Plus2 Q3 Gate Q3 Source Phase2 Output Q4 Gate Q4 Source Negative Temperature Coefficient Thermistor Pin1 Negative Temperature Coefficient Thermistor Pin2 Intermediate DC Bus Minus2 Not Connec

Features

DIP Silicon Carbide H.
Bridge Power Module for On.
board Charger (OBC) for xEV.
