NVXR17S90M2SPB - SiC Module

ON Semiconductor

📥 Download Datasheet

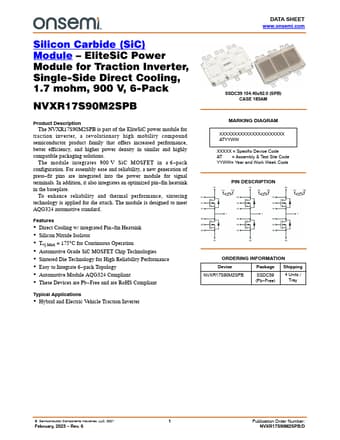

NVXR17S90M2SPB Datasheet Preview — Preview of NVXR17S90M2SPB PDF

Datasheet Details

Part number	NVXR17S90M2SPB
Manufacturer	ON Semiconductor
File Size	1.38 MB
Description	SiC Module
Datasheet	NVXR17S90M2SPB-ONSemiconductor.pdf

NVXR17S90M2SPB Product details

Description

The NVXR17S90M2SPB is part of the EliteSiC power module for traction inverter, a revolutionary high mobility compound semiconductor product family that offers increased performance, better efficiency, and higher power density in similar and highly compatible packaging solutions.The module integrates 900 V SiC MOSFET in a 6 pack configuration. fit pins are integrated into the power module for signal terminals.

Features

Direct Cooling w/ integrated Pin.
fin Heatsink.
Silicon Nitride Isolator.
Tvj. Max = 175C for Continuous Operation.
Automotive Grade SiC MOSFET Chip Technologies.
Sintered Die Technology for High Reliability Performance.
Easy to Integrate 6.
pack Topology.
Automotive Module AQG324 Compliant.
These Devices are Pb.
Free and are RoHS Compliant Typical.
