NVXK2PR80WXT2 - SiC Power MOSFET

ON Semiconductor

📥 Download Datasheet

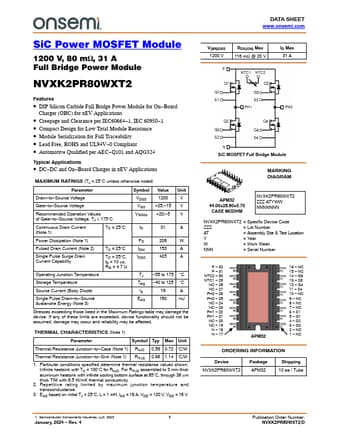

NVXK2PR80WXT2 Datasheet Preview — Preview of NVXK2PR80WXT2 PDF

Datasheet Details

Part number	NVXK2PR80WXT2
Manufacturer	ON Semiconductor
File Size	1.10 MB
Description	SiC Power MOSFET
Datasheet	NVXK2PR80WXT2-ONSemiconductor.pdf

NVXK2PR80WXT2 Product details

Description

Pin No. PH1 PH2 NTC1 NTC2 B+ Q2 Gate Q2 Source Q1 Gate Q1 Source Q4 Source Q4 Gate Q3 Source Q3 Gate Negative Power Terminal Phase 1 Output Phase 2 Output NTC pin1 NTC pin2 Positive Power Terminal Description ELECTRICAL CHARACTERISTICS (TJ = 25°C unless otherwise stated) Parameter Symbol Test Conditions OFF CHARACTERIST

Features

DIP Silicon Carbide Full Bridge Power Module for On.
Board Charger (OBC) for xEV.
