PZU2.4B-Q Zener voltage regulator diodes

PZU2.4B-Q Description

PZUxB_B2-Q series Zener voltage regulator diodes in a SOD323F package Rev.1 * 8 July 2025 Product data sheet 1.General .
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface Mounted Device (SMD) plastic package.

PZU2.4B-Q Features

* Total power dissipation: 550 mW
* Tolerance series: B: approximately 5 %; B2: approximately 2 %
* Small plastic package suitable for surface mounted design
* Wide working voltage range: nominal 2.4 V to 51 V
* Very low leakage current for a given reverse vol

PZU2.4B-Q Applications

* 3. Applications
* General regulation functions 4. Quick reference data Table 1. Quick reference data Symbol Parameter VF forward voltage Ptot total power dissipation Conditions IF = 10 mA Tamb ≤ 25 °C Min Typ Max Unit [1] - - 0.9 V [2] - - 550 mW [1] [2] Pulse test: tp ≤ 300 μ

📥 Download Datasheet

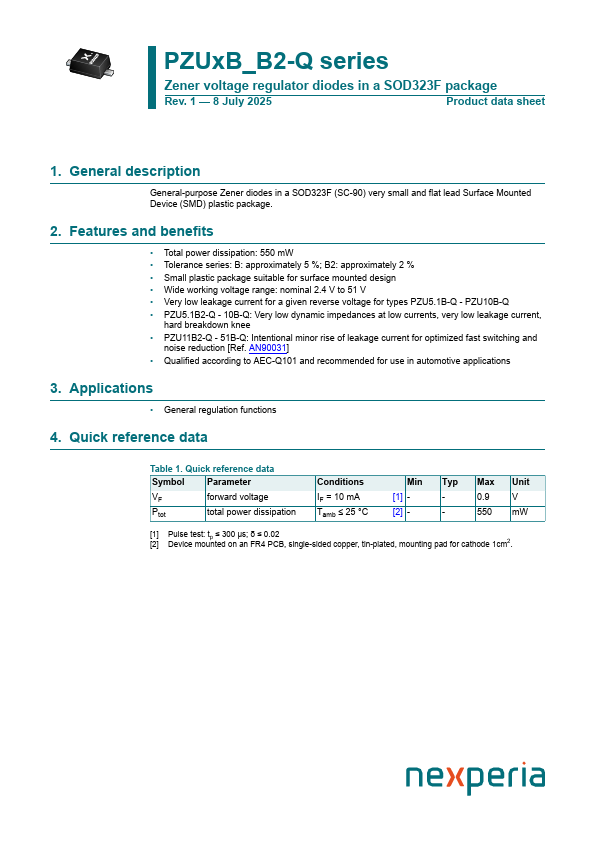

Preview of PZU2.4B-Q PDF

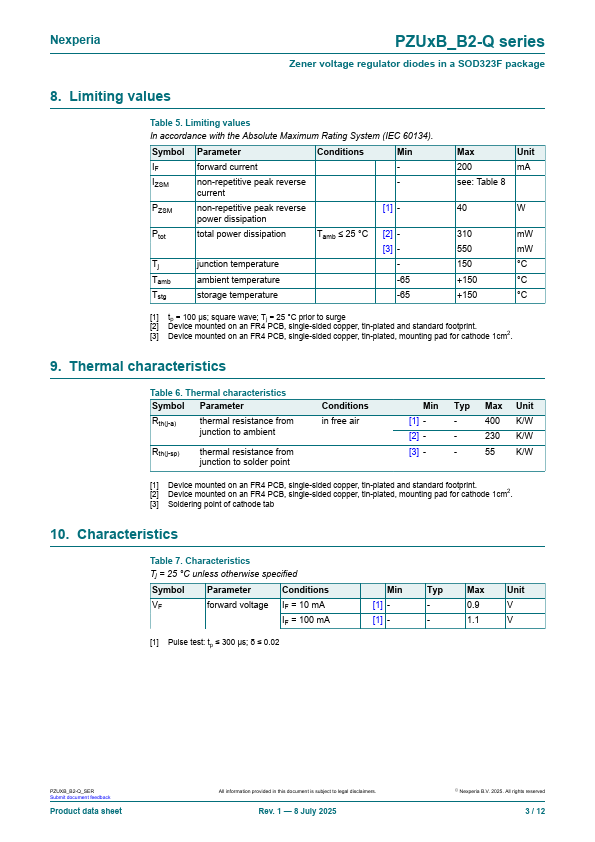

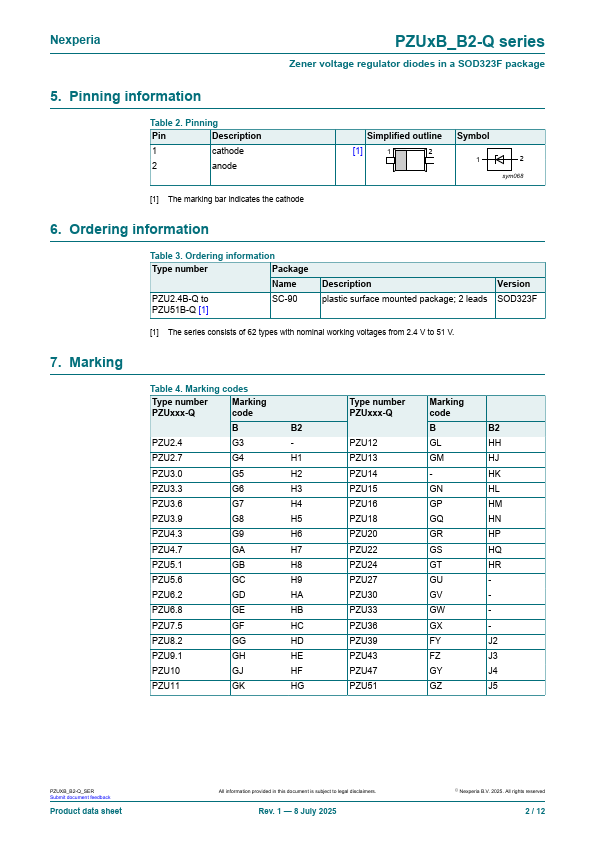

datasheet Preview Page 2 datasheet Preview Page 3
