PZU2.4, PZUxB - Single Zener diodes

Name: PZU2.4
SKU: PZU2.4-906070

NXP

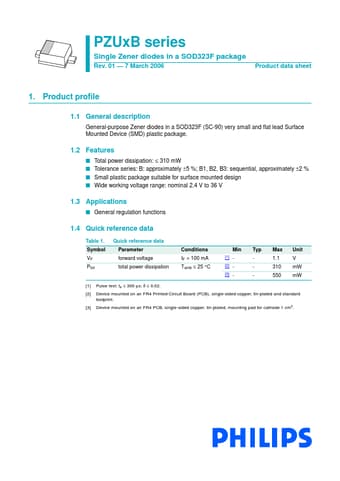

The PZU2.4 by NXP is a Single Zener diodes. Below is the official datasheet preview.

Datasheet Details

Part number	PZU2.4, PZUxB
Manufacturer	NXP
File Size	90.53 KB
Description	Single Zener diodes
Datasheet	PZUxB_PhilipsSemiconductors.pdf
Note	This datasheet PDF includes multiple part numbers: PZU2.4, PZUxB. Please refer to the document for exact specifications by model.
Additional preview pages of the PZU2.4 datasheet.

General-purpose Zener diodes in a SOD323F (SC-90) very small and ﬂat lead Surface Mounted Device (SMD) plastic package.

I Total power dissipation: ≤ 310 mW I Tolerance series: B: approximately ±5 %; B1, B2, B3: sequential, approximately ±2 % I Small plastic package suitable for surface mounted design I Wide working voltage range: nominal 2.4 V to 36 V 1.3.
