PZU2.7B2L, PZU2.4BL - Single Zener diodes

Name: PZU2.7B2L
SKU: PZU2.7B2L-1393390

NXP

The PZU2.7B2L by NXP is a Single Zener diodes. Below is the official datasheet preview.

Datasheet Details

Part number	PZU2.7B2L, PZU2.4BL
Manufacturer	NXP
File Size	113.75 KB
Description	Single Zener diodes
Datasheet	PZU2.4BL-NXP.pdf
Note	This datasheet PDF includes multiple part numbers: PZU2.7B2L, PZU2.4BL. Please refer to the document for exact specifications by model.

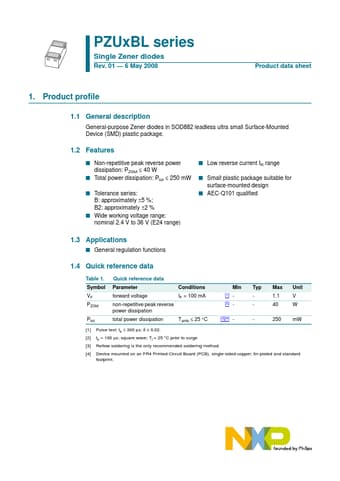

Additional preview pages of the PZU2.7B2L datasheet.

General-purpose Zener diodes in SOD882 leadless ultra small Surface-Mounted Device (SMD) plastic package.

I Non-repetitive peak reverse power dissipation: PZSM ≤ 40 W I Total power dissipation: Ptot ≤ 250 mW I Tolerance series: B: approximately ±5 %; B2: approximately ±2 % I Wide working voltage range: nominal 2.4 V to 36 V (E24 range) I Low reverse current IR range I Small plastic package suitable for surface-mounted design I AEC-Q101 qualiﬁed 1.3.
