PNE20040CPE - dual common cathode hyperfast recovery rectifier

nexperia

The PNE20040CPE by nexperia is a dual common cathode hyperfast recovery rectifier. Below is the official datasheet preview.

📥 Download Datasheet

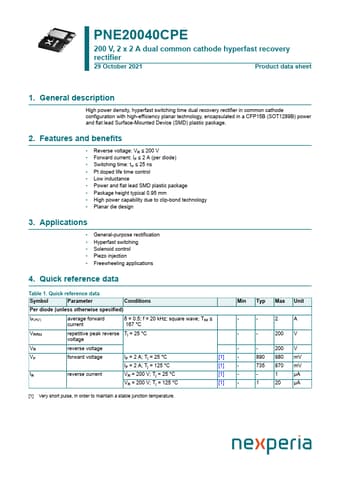

PNE20040CPE dual common cathode hyperfast recovery rectifier by nexperia - Datasheet Preview — Official preview page of the **PNE20040CPE** dual common cathode hyperfast recovery rectifier datasheet (nexperia).

Datasheet Details

Part number	PNE20040CPE
Manufacturer	nexperia
File Size	256.29 KB
Description	dual common cathode hyperfast recovery rectifier
Datasheet	PNE20040CPE-nexperia.pdf
Additional preview pages of the PNE20040CPE datasheet.

PNE20040CPE Product details

Description

High power density, hyperfast switching time dual recovery rectifier in common cathode configuration with high-efficiency planar technology, encapsulated in a CFP15B (SOT1289B) power and flat lead Surface-Mounted Device (SMD) plastic package.

Features

Reverse voltage: VR ≤ 200 V.
Forward current: IF ≤ 2 A (per diode).
Switching time: trr ≤ 25 ns.
Pt doped life time control.
Low inductance.
Power and flat lead SMD plastic package.
Package height typical 0.95 mm.
High power capability due to clip-bond technology.
Planar die design 3.
