PNE20020ER - 2A hyperfast recovery rectifier

nexperia

The PNE20020ER by nexperia is a 2A hyperfast recovery rectifier. Below is the official datasheet preview.

📥 Download Datasheet

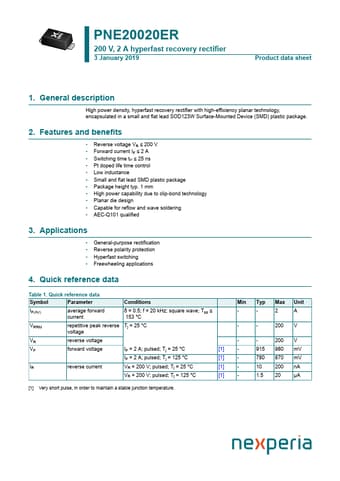

PNE20020ER 2A hyperfast recovery rectifier by nexperia - Datasheet Preview — Official preview page of the **PNE20020ER** 2A hyperfast recovery rectifier datasheet (nexperia).

Datasheet Details

Part number	PNE20020ER
Manufacturer	nexperia
File Size	236.02 KB
Description	2A hyperfast recovery rectifier
Datasheet	PNE20020ER-nexperia.pdf
Additional preview pages of the PNE20020ER datasheet.

PNE20020ER Product details

Description

High power density, hyperfast recovery rectifier with high-efficiency planar technology, encapsulated in a small and flat lead SOD123W Surface-Mounted Device (SMD) plastic package.

Features

Reverse voltage VR ≤ 200 V.
Forward current IF ≤ 2 A.
Switching time trr ≤ 25 ns.
Pt doped life time control.
Low inductance.
Small and flat lead SMD plastic package.
Package height typ. 1 mm.
High power capability due to clip-bond technology.
Planar die design.
Capable for reflow and wave soldering.
AEC-Q101 qualified 3.
