PNE20020EP - 2A hyperfast PN-rectifier

nexperia

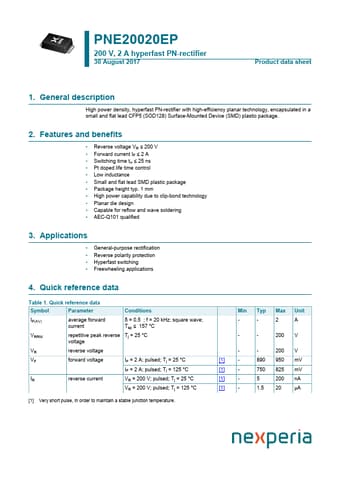

The PNE20020EP by nexperia is a 2A hyperfast PN-rectifier. Below is the official datasheet preview.

📥 Download Datasheet

PNE20020EP 2A hyperfast PN-rectifier by nexperia - Datasheet Preview — Official preview page of the **PNE20020EP** 2A hyperfast PN-rectifier datasheet (nexperia).

Datasheet Details

Part number	PNE20020EP
Manufacturer	nexperia
File Size	216.43 KB
Description	2A hyperfast PN-rectifier
Datasheet	PNE20020EP-nexperia.pdf
Additional preview pages of the PNE20020EP datasheet.

PNE20020EP Product details

Description

High power density, hyperfast PN-rectifier with high-efficiency planar technology, encapsulated in a small and flat lead CFP5 (SOD128) Surface-Mounted Device (SMD) plastic package.

Features

Reverse voltage VR ≤ 200 V.
Forward current IF ≤ 2 A.
Switching time trr ≤ 25 ns.
Pt doped life time control.
Low inductance.
Small and flat lead SMD plastic package.
Package height typ. 1 mm.
High power capability due to clip-bond technology.
Planar die design.
Capable for reflow and wave soldering.
AEC-Q101 qualified 3.
