PESD15VW1UCSF Extremely low capacitance unidirectional ESD protection diode

PESD15VW1UCSF Description

PESD15VW1UCSF Extremely low capacitance unidirectional ESD protection diode 25 January 2022 Short data sheet 1.General .
Extremely low capacitance unidirectional ElectroStatic Discharge (ESD) protection diode, part of the TrEOS protection family.

PESD15VW1UCSF Features

* Unidirectional ESD protection of one line
* VRWM = 15 V device
* IEC 61000-4-5 (surge): IPP = 24 A peak pulse (average measured)
* Extremely low diode capacitance: Cd = 1 pF typical
* Extremely low clamping voltage to protect sensitive I/Os
* Extreme

PESD15VW1UCSF Applications

* Cellular handsets and accessories
* Portable electronics
* Communication systems
* Computers and peripherals
* USB2.0, SD-card data lines 4. Quick reference data Table 1. Quick reference data Symbol Parameter VRWM reverse standoff voltage Cd diode ca

📥 Download Datasheet

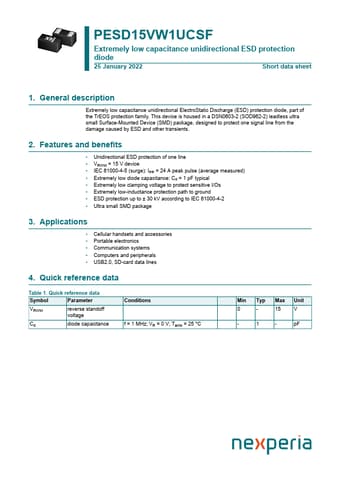

Preview of PESD15VW1UCSF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PESD15VW1UCSF
Manufacturer
nexperia ↗
File Size
151.15 KB
Datasheet
PESD15VW1UCSF-nexperia.pdf
Description
Extremely low capacitance unidirectional ESD protection diode
