PESD15VL1BA-Q - Low capacitance bidirectional ESD protection diode

Name: PESD15VL1BA-Q
SKU: PESD15VL1BA-Q-1515728

nexperia

📥 Download Datasheet

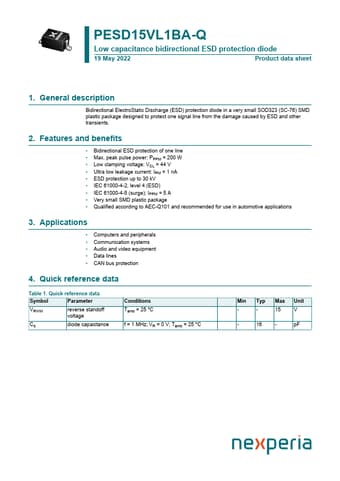

PESD15VL1BA-Q Datasheet Preview — Preview of PESD15VL1BA-Q PDF

Datasheet Details

Part number	PESD15VL1BA-Q
Manufacturer	nexperia
File Size	225.56 KB
Description	Low capacitance bidirectional ESD protection diode
Datasheet	PESD15VL1BA-Q-nexperia.pdf

PESD15VL1BA-Q Product details

Description

Bidirectional ElectroStatic Discharge (ESD) protection diode in a very small SOD323 (SC-76) SMD plastic package designed to protect one signal line from the damage caused by ESD and other transients.

Features

Bidirectional ESD protection of one line.
Max. peak pulse power: PPPM = 200 W.
Low clamping voltage: VCL = 44 V.
Ultra low leakage current: IRM = 1 nA.
ESD protection up to 30 kV.
IEC 61000-4-2, level 4 (ESD).
IEC 61000-4-5 (surge); IPPM = 5 A.
Very small SMD plastic package.
Qualified according to AEC-Q101 and recommended for use in automotive.
