PESD15VW1BCSF Extremely low capacitance bidirectional ESD protection diode

PESD15VW1BCSF Description

PESD15VW1BCSF Extremely low capacitance bidirectional ESD protection diode 4 May 2021 Short data sheet 1.General .
Extremely low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode, part of the TrEOS protection family.

PESD15VW1BCSF Features

* Bidirectional ESD protection of one line
* VRWM = 15 V device
* Extremely high surge robustness of 20 A at 8/20 pulse
* Extremely low diode capacitance, Cd = 0.45 pF typical
* Extremely low clamping voltage to protect sensitive I/Os
* Extremely low i

PESD15VW1BCSF Applications

* Cellular handsets and accessories
* Portable electronics
* Communication systems
* Computers and peripherals
* USB3.2 and HDMI2.0 data lines 4. Quick reference data Table 1. Quick reference data Symbol Parameter VRWM reverse standoff voltage Cd diode

📥 Download Datasheet

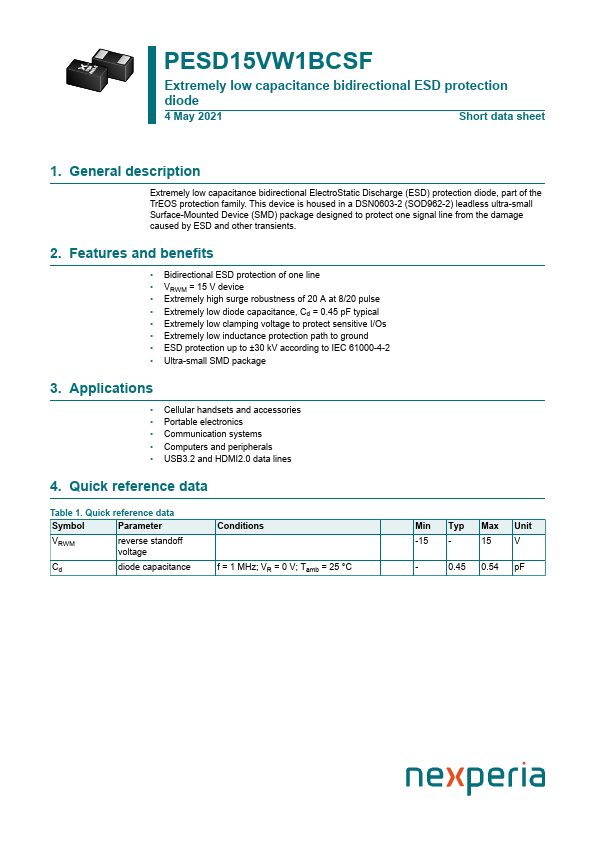

Preview of PESD15VW1BCSF PDF

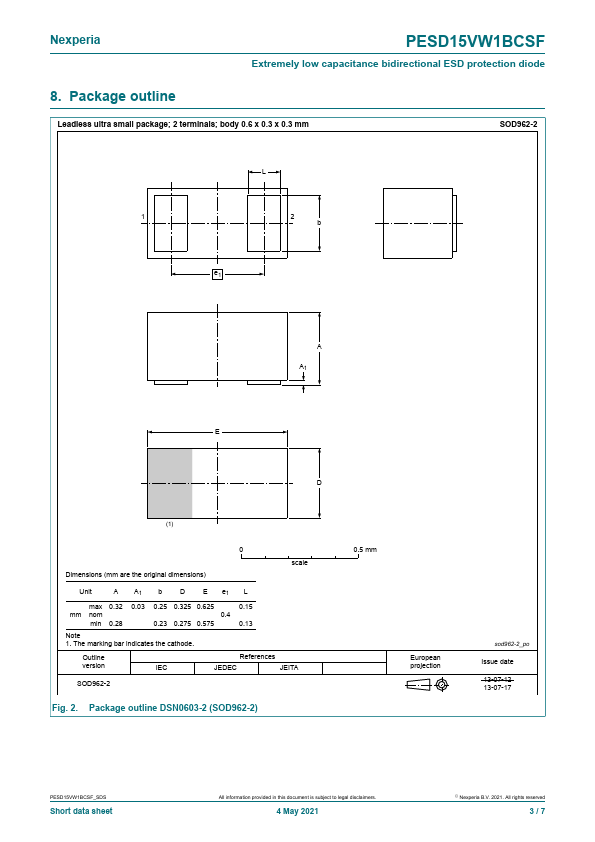

datasheet Preview Page 2 datasheet Preview Page 3
