NID1100 1A ideal diode

NID1100 Description

NID1100 1.5 V to 5.5 V, 1 A, ideal diode with forward voltage blocking Rev.2 * 17 March 2025 Product data sheet 1.General .
The NID1100 is a low forward-voltage drop ideal diode with forward and reverse voltage blocking.

NID1100 Features

* Input voltage range of 1.5 V to 5.5 V
* Low forward drop voltage: VFWD = 120 mV (typ. at 3.6 V input and 1 A load current)
* Reverse voltage blocking always
* Low leakage current when reverse biased
* Forward voltage blocking when disabled
* Low quie

NID1100 Applications

* IoT systems
* Gas meters, smart meters
* CO Detectors
* Battery backup systems
* USB powered devices NID1100 RST1 IN EN ST VIN1 CIN1 GND COUT RL NID1100 RST2 IN EN ST VIN2 CIN2 GND Fig. 1. Simplified application aaa-042075 Nexperia NID1100

📥 Download Datasheet

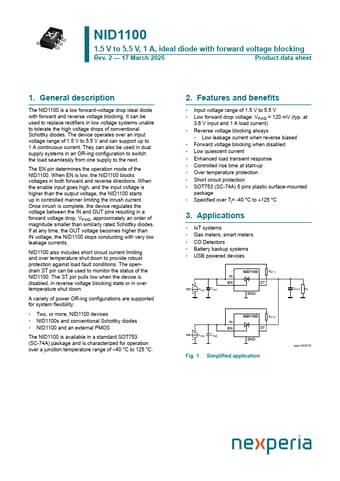

Preview of NID1100 PDF
