NID9N05BCL, NID9N05ACL N-Channel Power MOSFET

NID9N05BCL Description

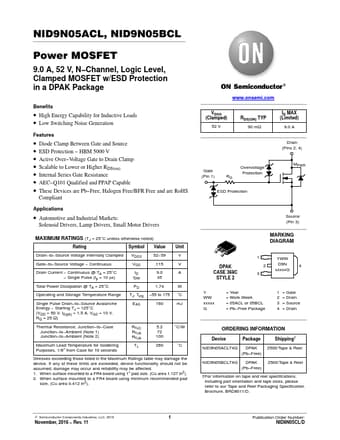

NID9N05ACL, NID9N05BCL Power MOSFET 9.0 A, 52 V, N *Channel, Logic Level, Clamped MOSFET w/ESD Protection in a DPAK Package Benefits .

NID9N05BCL Features

* Diode Clamp Between Gate and Source
* ESD Protection
* HBM 5000 V
* Active Over
* Voltage Gate to Drain Clamp
* Scalable to Lower or Higher RDS(on)
* Internal Series Gate Resistance
* AEC
* Q101 Qualified and PPAP Capable

NID9N05BCL Applications

* Automotive and Industrial Markets: Solenoid Drivers, Lamp Drivers, Small Motor Drivers MAXIMUM RATINGS (TJ = 25°C unless otherwise noted) Rating Symbol Value Unit Drain
* to
* Source Voltage Internally Clamped Gate
* to
* Source Voltage
* Continuous Drai
