Datasheet Details
- Part number
- BUK7Q8R4-40H
- Manufacturer
- nexperia ↗
- File Size
- 329.21 KB
- Datasheet
- BUK7Q8R4-40H-nexperia.pdf
- Description
- Standard level N-Channel MOSFET
BUK7Q8R4-40H Description

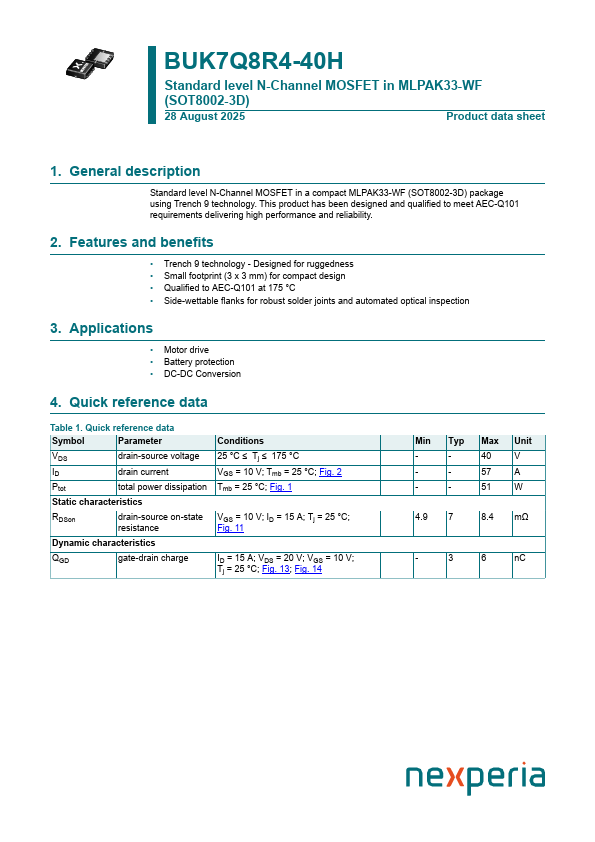

BUK7Q8R4-40H Standard level N-Channel MOSFET in MLPAK33-WF (SOT8002-3D) 28 August 2025 Product data sheet 1.General .
Standard level N-Channel MOSFET in a compact MLPAK33-WF (SOT8002-3D) package using Trench 9 technology.
BUK7Q8R4-40H Features
* Trench 9 technology - Designed for ruggedness
* Small footprint (3 x 3 mm) for compact design
* Qualified to AEC-Q101 at 175 °C
BUK7Q8R4-40H Applications
* Motor drive
* Battery protection
* DC-DC Conversion
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VDS
drain-source voltage
ID
drain current
Ptot
total power dissipation
Static characteristics
RDSon
drain-source on-state resistance
Dyna
