BC847-Q 100mA NPN general-purpose transistors

BC847-Q Description

BC847x-Q series 45 V, 100 mA NPN general-purpose transistors Rev.2 * 24 June 2021 Product data sheet 1.General .
NPN general-purpose transistors in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.

BC847-Q Features

* General-purpose transistors
* SMD plastic packages
* Three different gain selections

BC847-Q Applications

* 3. Applications
* General-purpose switching and amplification 4. Quick reference data Table 2. Quick reference data Tamb = 25 °C unless otherwise specified. Symbol Parameter VCEO IC hFE collector-emitter voltage collector current DC current gain BC847-Q BC847A-Q BC847B-Q BC847C-Q

📥 Download Datasheet

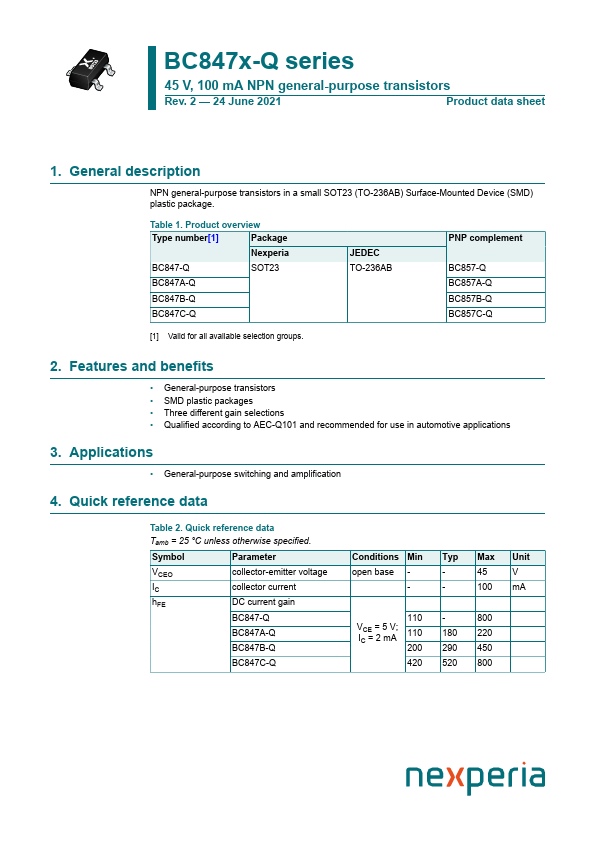

Preview of BC847-Q PDF

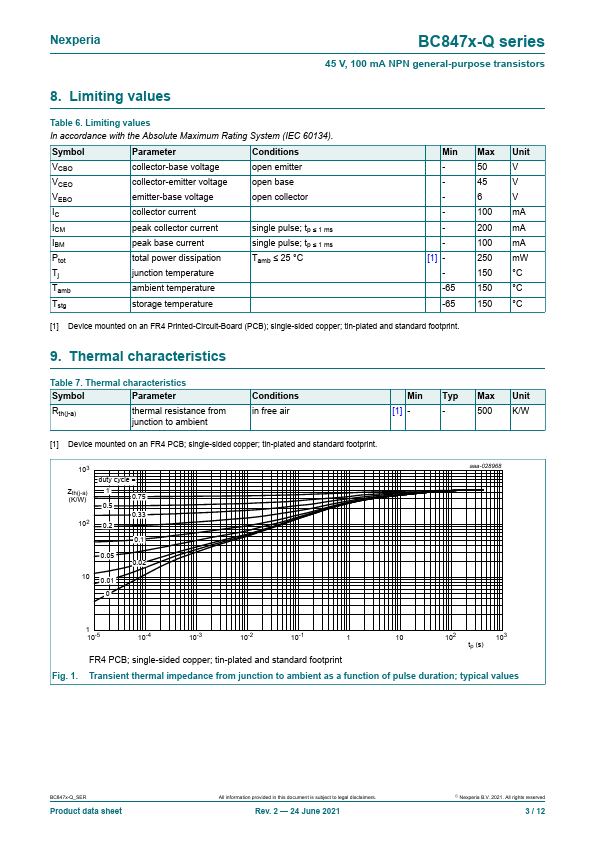

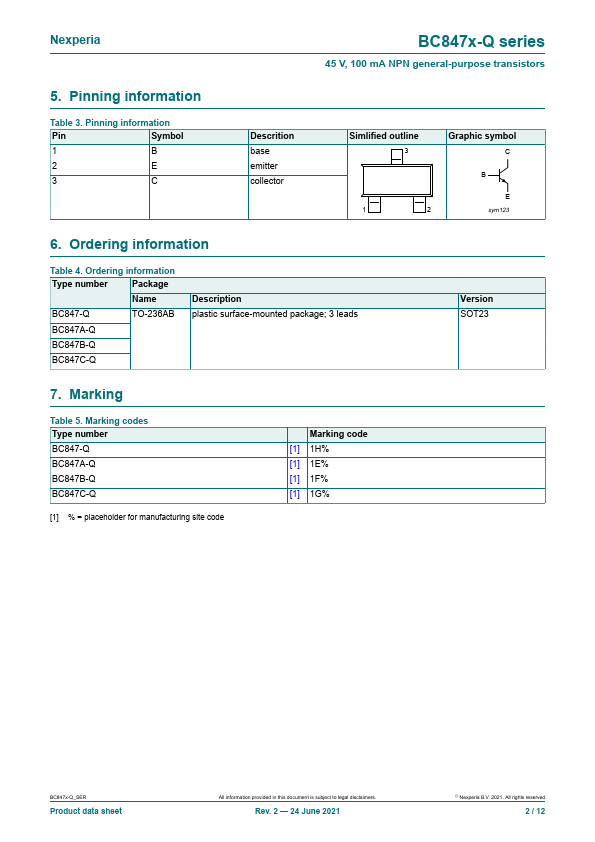

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BC847-Q
Manufacturer
nexperia ↗
File Size
220.86 KB
Datasheet
BC847-Q-nexperia.pdf
Description
100mA NPN general-purpose transistors
