BC847AQA - 100mA NPN general-purpose transistors

Description

NPN general-purpose transistors in a leadless ultra small DFN1010D-3 (SOT1215) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.

Table 1.

Features

  • General-purpose transistors.
  • Three current gain selections.
  • Low package height of 0.37 mm.
  • Suitable for Automatic Optical Inspection (AOI) of solder joint.
  • AEC-Q101 qualified 1.3.

📥 Download Datasheet

Datasheet Details

Part number BC847AQA
Manufacturer Nexperia
File Size 1.20 MB
Description 100mA NPN general-purpose transistors
Datasheet download datasheet BC847AQA Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BC847A NPN Silicon AF Transistors Infineon
BC847A NPN General Purpose Amplifier Fairchild Semiconductor
BC847A General Purpose Transistors ON Semiconductor
BC847A NPN Transistor GME
BC847A SMD General Purpose NPN Transistors Diotec Semiconductor

Other Datasheets by Nexperia

Part Number Description
BC847AQB 100mA NPN general-purpose transistor
BC847AQC-Q 100mA NPN general-purpose transistor
BC847A 100mA NPN transistors
BC847A-Q 100mA NPN general-purpose transistors
BC847AM 100mA NPN general-purpose transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

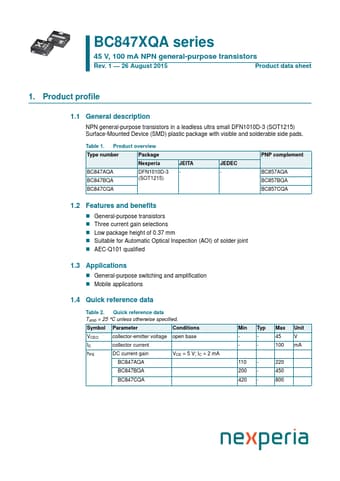

BC847XQA series 45 V, 100 mA NPN general-purpose transistors Rev. 1 — 26 August 2015 Product data sheet 1. Product profile 1.1 General description NPN general-purpose transistors in a leadless ultra small DFN1010D-3 (SOT1215) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads. Table 1. Product overview Type number Package Nexperia BC847AQA BC847BQA DFN1010D-3 (SOT1215) BC847CQA JEITA - JEDEC - PNP complement BC857AQA BC857BQA BC857CQA 1.2 Features and benefits  General-purpose transistors  Three current gain selections  Low package height of 0.37 mm  Suitable for Automatic Optical Inspection (AOI) of solder joint  AEC-Q101 qualified 1.3 Applications  General-purpose switching and amplification  Mobile applications 1.
