BC847AQB 100mA NPN general-purpose transistor

BC847AQB Description

BC847xQB series 45 V, 100 mA NPN general-purpose transistor Rev.1 * 24 January 2020 Product data sheet 1.General .
NPN general-purpose transistor in an ultra small DFN1110D-3 (SOT8015) leadless SurfaceMounted Device (SMD) plastic package with side-wettable flanks.

BC847AQB Features

* High power dissipation capability
* Suitable for Automatic Optical Inspection (AOI) of solder joint
* Smaller footprint compared to conventional leaded SMD packages
* Low package height of 0.5 mm

BC847AQB Applications

* General-purpose switching and amplification
* Space restricted applications 4. Quick reference data Table 2. Quick reference data Tamb = 25 °C unless otherwise specified. Symbol Parameter Conditions VCEO collector-emitter voltage open base IC collector current ICM peak col

📥 Download Datasheet

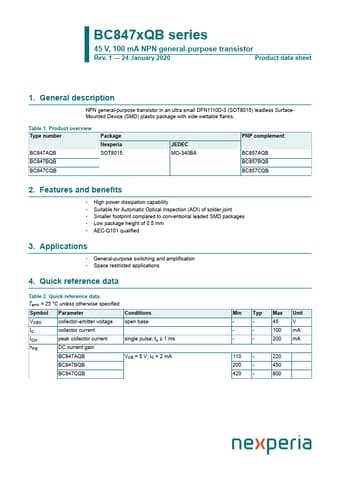

Preview of BC847AQB PDF
datasheet Preview Page 2 datasheet Preview Page 3
