BC817K-16-Q 45V 500mA NPN general-purpose transistors

BC817K-16-Q Description

BC817K-Q series 45 V, 500 mA NPN general-purpose transistors Rev.1 * 29 April 2025 Product data sheet 1.General .
NPN general-purpose transistors in a small SOT23 Surface-Mounted Device (SMD) plastic package.

BC817K-16-Q Features

* Three current gain selections
* High power dissipation capability

BC817K-16-Q Applications

* 3. Applications
* General-purpose switching and amplification 4. Quick reference data Table 2. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current ICM peak collector current hFE DC current gain BC817K-16-Q BC817K-25-Q BC817K-40-Q [1] pulse

📥 Download Datasheet

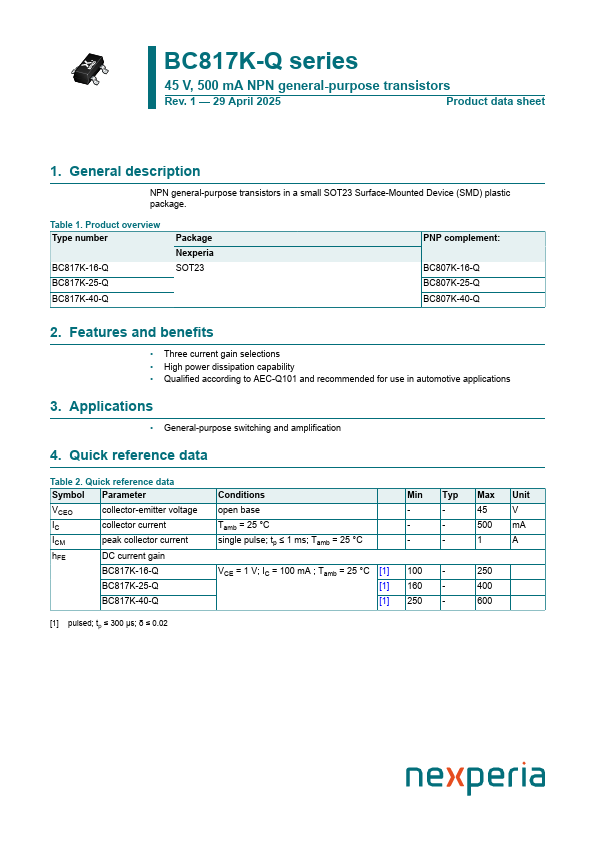

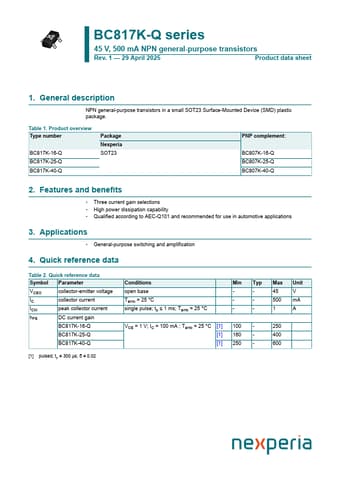

Preview of BC817K-16-Q PDF

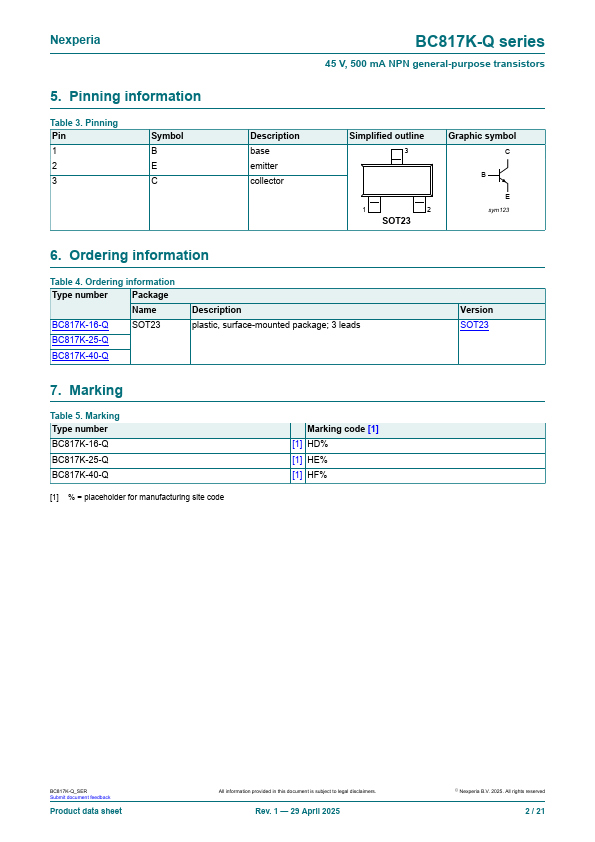

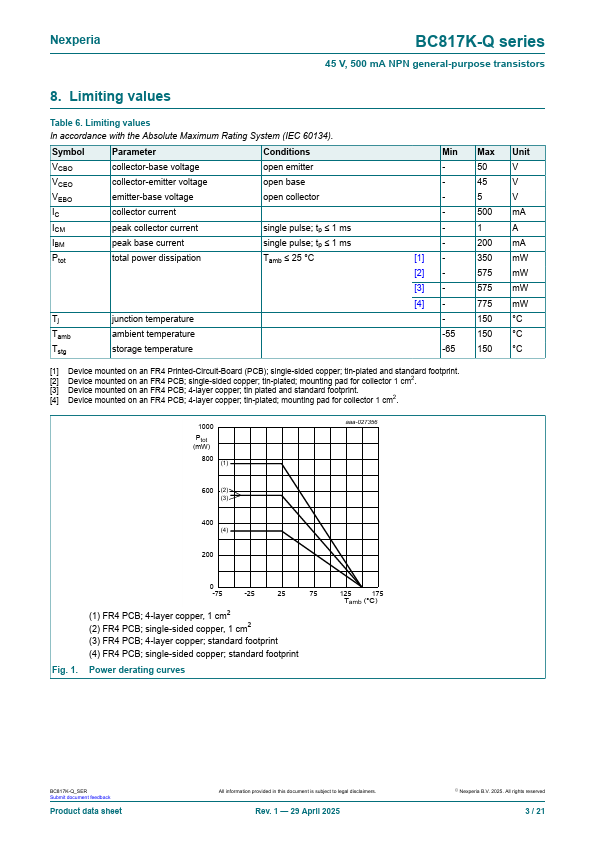

datasheet Preview Page 2 datasheet Preview Page 3
