BC817-16-G General Purpose Transistors

BC817-16-G Description

General Purpose Transistors BC817-16-G/25-G/40-G (NPN) RoHS Device .

BC817-16-G Applications

* - High collector current. - High current gain. - Low collector-emitter saturation voltage. Marking: BC817-16-G: 6A BC817-25-G: 6B BC817-40-G: 6C Diagram: Collector 3 1 Base 2 Emitter SOT-23 0.056(1.40) 0.047(1.20) 0.119(3.00) 0.110(2.80) 3 12 0.079(2.00) 0.071(1.80) 0.045(1.15) 0.035(0.90) 0.0

📥 Download Datasheet

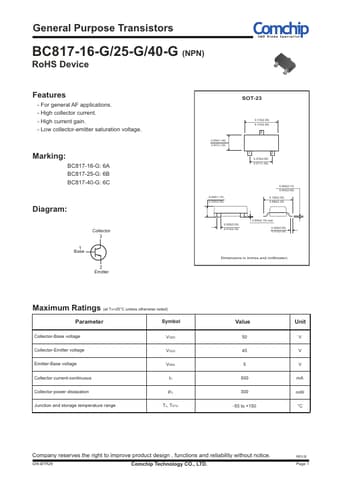

Preview of BC817-16-G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BC817-16-G
Manufacturer
Comchip
File Size
136.43 KB
Datasheet
BC817-16-G-Comchip.pdf
Description
General Purpose Transistors
