BC817-16Q 45V NPN SMALL SIGNAL TRANSISTOR

BC817-16Q Description

.
This Bipolar Junction Transistor (BJT) is designed to meet the stringent requirements of automotive applications. BVCEO > 45V.

BC817-16Q Features

* BVCEO > 45V
* IC = 0.5A Continuous Collector Current
* ICM = 1A Peak Pulse Current
* Complementary PNP Types: BC807-xxQ
* Ideally Suited for Automatic Insertion
* Epitaxial Planar Die Construction

📥 Download Datasheet

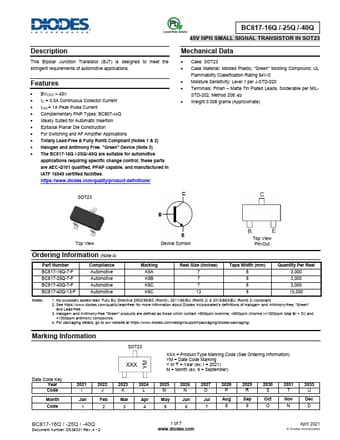

Preview of BC817-16Q PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BC817-16Q
Manufacturer
DIODES ↗
File Size
367.80 KB
Datasheet
BC817-16Q-Diodes.pdf
Description
45V NPN SMALL SIGNAL TRANSISTOR
