BC817-16-HF General Purpose Transistors

BC817-16-HF Description

General Purpose Transistors BC817-16-HF/25-HF/40-HF (NPN) RoHS Device Halogen Free .

BC817-16-HF Applications

* - High collector current. - High current gain. - Low collector-emitter saturation voltage. Mechanical data - Case: SOT-23, molded plastic. - Terminals: Solderable per MIL-STD-750, method 2026. - Weight: 0.0078 grams(approx. ). Diagram: Collector 3 1 Base 2 Emitter Maximum Ratings (at TA=25°C unl

📥 Download Datasheet

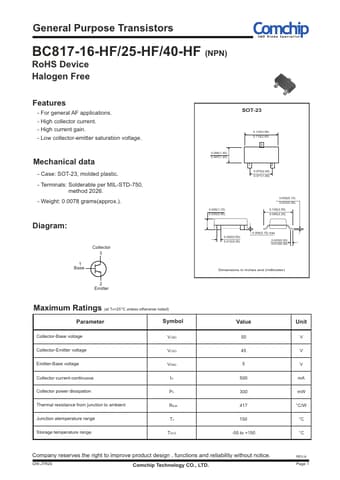

Preview of BC817-16-HF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BC817-16-HF
Manufacturer
Comchip
File Size
137.31 KB
Datasheet
BC817-16-HF-Comchip.pdf
Description
General Purpose Transistors
