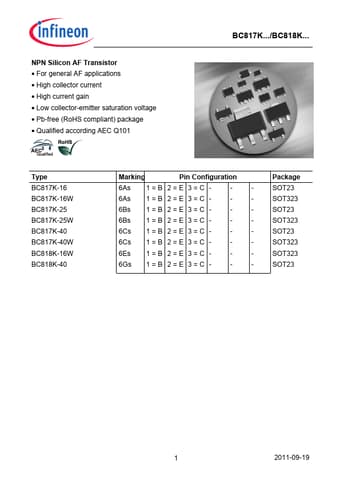

NPN Silicon AF Transistor • For general AF applications • High collector current • High current gain • Low collector-emitter saturation voltage • Pb-free (RoHS compliant) package • Qualified according AEC Q101
BC817K.../BC818K...
Type BC817K-16 BC817K-16W BC817K-25 BC817K-25W BC817K-40 BC817K-40W BC818K-16W BC818K-40
Marking
Pin Configuration
6As 1 = B 2 = E 3 = C -
-
6As 1 = B 2 = E 3 = C -
-
6Bs 1 = B 2 = E 3 = C -
-
6Bs 1 = B 2 = E 3 = C -
-
6Cs 1 = B 2 = E 3 = C -
-
6Cs 1 = B 2 = E 3 = C -
-
6Es 1 = B 2 = E 3 = C -
-
6Gs 1 = B 2 = E 3 = C -
-
-
Package SOT23 SOT323 SOT23 SOT323 SOT23 SOT323 SOT323 SOT23
1 2011-09-19
BC817K.../BC818K...
Maximum Ratings Parameter
Symbol
Value
Collector-emitter voltage BC817... BC818...
BC817K-16 Datasheet
