BAW56M High-speed switching diode

BAW56M Description

BAW56M High-speed switching diode 28 October 2022 Product data sheet 1.General .
High-speed switching diode, encapsulated in a ultra small SOT883 (SC-101) Surface-Mounted Device (SMD) plastic package.

BAW56M Features

* High switching speed: trr ≤ 4 ns
* Low capacitance: Cd ≤ 2 pF
* Low leakage current
* Reverse voltage: VR ≤ 90 V
* Ultra small SMD plastic packages

BAW56M Applications

* High-speed switching
* General-purpose switching 4. Quick reference data Table 1. Quick reference data Symbol Parameter Per diode IR reverse current VR reverse voltage trr reverse recovery time Conditions VR = 80 V; Tamb = 25 °C IF = 10 mA; IR = 10 mA; RL = 100 Ω; IR(me

📥 Download Datasheet

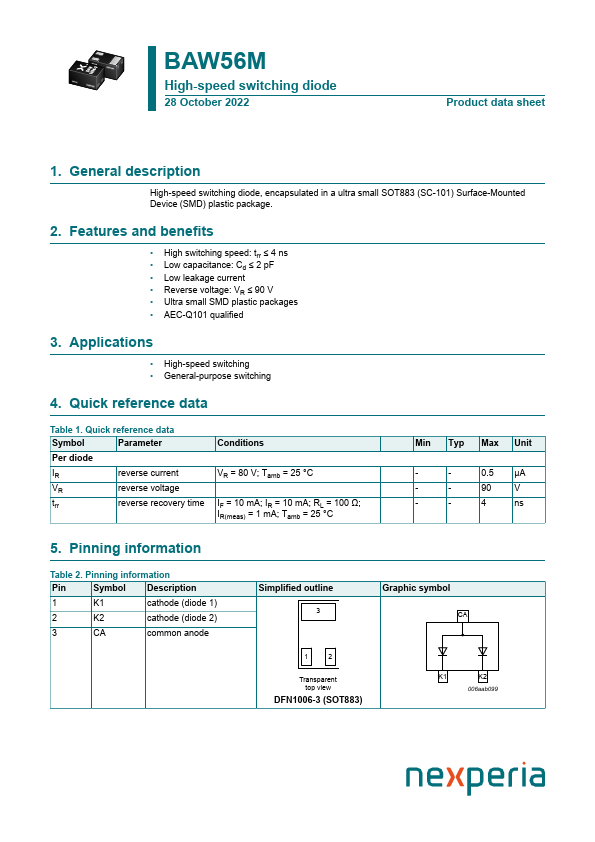

Preview of BAW56M PDF

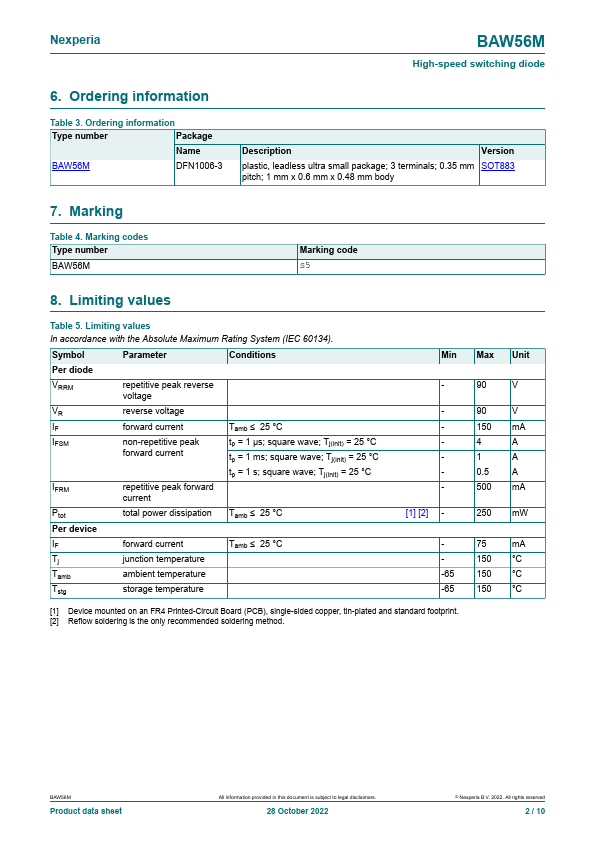

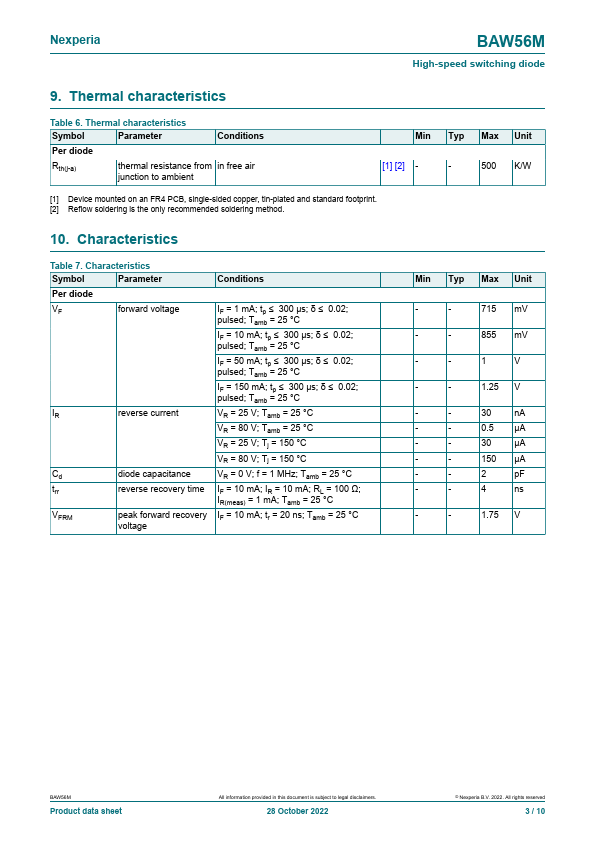

datasheet Preview Page 2 datasheet Preview Page 3
